With characters of High Density, Micro, Light, Highly Reliable.
This series adapts to the diversified needs of products shape. 3 kinds of tail length, customized produce for another length.
Working temperature environment:-55℃~+125℃.
Machine life: 200 times.

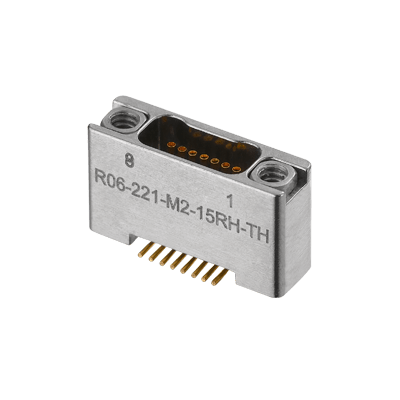

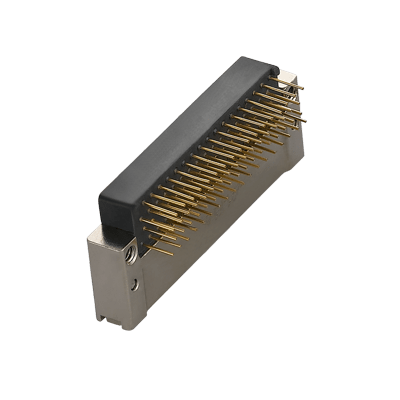

Characteristics of Nano Right Angle PCB Connector
0.635 mm (.025″) contact spacing (double the density of a Micro-D).
Number of ways: 9, 15, 21, 25, 31, 37 and 51.
Double row.
High reliability twist pin contacts.
Metal shell construction with captivated hardware.
Sunkye’s range of Nano-D connectors which is covered by the MIL-DTL-32139* standard is ideally suited to equipment and applications where weight, miniaturization and long term performance are required. This kind of nano miniature connectors is available in 7 contact arrangements (9 to 51 contacts) for rectangular Nano-D connectors.

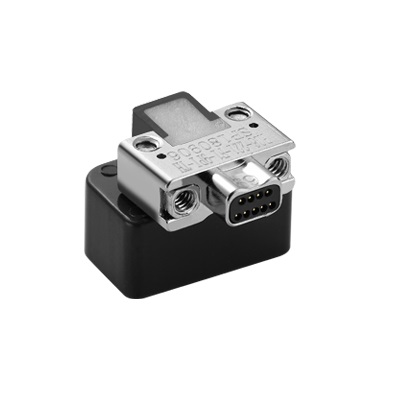

Sunkye Nano sealed connector series features gold alloy Twist Pin contacts, Glass-sinter sealed can withstand high temperature and high voltage.
The nano circular connectors can meet oil exploration and other harsh environment applications. This series products widely applied in the military, land ground defense, air or areas.
Furthermore, Sunkye fully tests its hermetic Nano-D solutions to provide reliability and satisfaction to its customers. Helium leak rate is the most common and most reliable method to quantify a small leak. Based on its expertise, Sunkye can also design tailor-made nano circular connectors to fit your application needs.
Hermetic sealed PCB connector are used in applications where an enclosure needs to be isolated from the outside environment. Panel feed-through is the main application for this type of connector. In the vast majority of applications, the use of a hermetic encapsulate offers sufficient levels of hermeticity at a reasonable price. Only extreme environments require glass-to-metal sealing.
If you want to know more kinds of mil spec connectors, please visit our website.
These Nano miniature connectors offer premium performance and reliability for demanding applications.

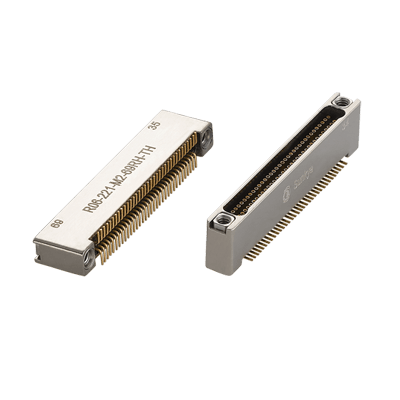

SMT tail termination type with 3 kinds of mounting styles.
Working temperature environment:-55℃~+125℃. Machine life: 200times.
Optimal cabling density is achieved in a rectangular ultra-high density connector made with Nano-D contacts and spacing inside a standard Micro-D shell size. Such a connector can accommodate a very large amount of pins while retaining excellent Micro-D reliability.
This same process can be applied to most of the standard and special Micro-D range, making it possible to have ultra-high density versions of PCB connectors, wide flange versions, circular, rectangular and combo style versions with a mix of Micro-D and Nano-D contacts.
As the need for increased miniaturization is becoming even greater, Sunkye has developed an ultra-high density solution within the existing micro connector size. By putting Nanocontacts and Nano pitch spacing into an existing micro shell, extremely compact connectors with very high pin counts can be produced in circular, rectangular, plastic and metal forms.
Most electrical and environmental performances are comparable to those of standard Nano-D connectors (250 Vac, 200°C), combined with the robustness and shielding efficiency of the Micro-D metal shell which is compatible with all the hardware types available for Micro-D pigtails.
If you want to know more kinds of mil spec connectors, please visit our website.
The connector is free mounted, not fixed, and usually mated with a receptacle that has a nut.
Recommended JC (straight slot screw) types of screws.
Tight by a miniature straight screwdriver.
Choosing the JC1 (hex) type of screws, tight by 1.27 mm sub tense screwdriver.
PC tail solder on flexible PCB, PCB thickness is 0.25MAX.
Working temperature environment: -55℃~+125℃.
Machine life: 200times.
Nano Surface Mount USB Connector hardware includes jackscrew or female threaded shells. Applications include down-hole electronics, missile systems, launch vehicles, and satellites. M32139 type dual row nano miniature rectangular connectors. Flex assembly, PCB thru-hole, surface mount, straddle mount or back to back cable configurations. Connector savers and EMI protective cover are also available. Nano miniature dual-row plug and receptacle connectors are offered in titanium, stainless steel or aluminum shells. Straddle connector are configured with 0.635 mm contact spacing and DWV rating of 250 volts AC. Up to 11 contact layouts are available with three wire type options including Ultra lightweight insulation with gold-coated high strength copper; extruded PTFE insulation with silver coated copper, and cross-link modified ETFE insulation with high strength silver coated copper.
If you want to know more kinds of d sub connector, please visit our website.
SMT is called Surface Mount Technology. It is a kind of Circuit assembly method that assembles components without pins or short leads (SMC / SMD for Short) on the surface of Printed Circuit Board (PCB) or other substrate by reflow soldering or immersion soldering.
Sunkye surface mount power connector offer premium performance and reliability for demanding applications meeting the mil spec requirements of MIL DTL 32139. Vertical connectors go from the top of one tunnel to the bottom of another tunnel (or another connector). You can connect to the bottom of a glass tunnel but not the top. Once the SMT power connector is attached both top and bottom you can build a ladder in it from either end that allows you to travel from one tunnel to the other. The contacts number of Sunkye Nano vertical SMT Power connector series including: 9, 15, 21, 25, 31, 37, 51, 65, 69.

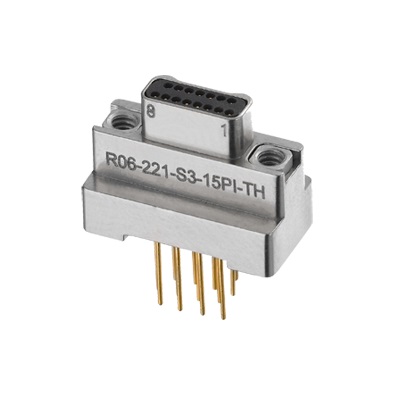

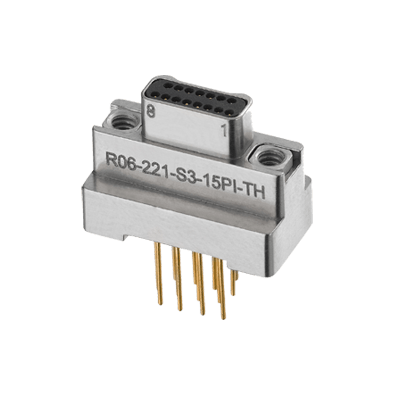

Dual Row Vertical PCB Surface Mount Power Connector
Reliability for micro-miniature operating systems.
Several tail lengths available.
Operating temperature: 150°C or 200°C.
7 contact arrangements (9 to 51 contacts).
Three locking component type of Nano Vertical Surface Mount Power Connector Available:
TH, usually mated with receptacle/plug that has a locking screw.
DZ usually mated with a receptacle that has a guide hole, and NH usually mated with a plug that has a guide pin.
Connector Working temperature environment:-55℃~+125℃.
Machine life: 200 times.
Contact Spacing 0.635 mm (.025″)
Different configurations of Nano Vertical SMT Connector
Mil Spec Nano D rectangular connectors for cables.
Mil Spec Nano D rectangular connectors for PCBs.
EMI versions.

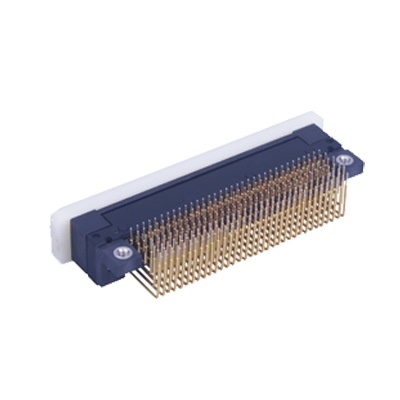

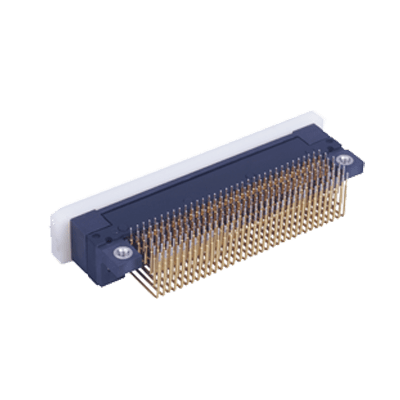

High density Micro D SMT power connector.
Characteristics of Nano Vertical SMT Connector
0.635 mm (.025″) contact spacing (double the density of a Micro-D).
The contact number: 9, 15, 21, 25, 31, 37 and 51.
Standard double row.
High reliability twist pin contacts.
Metal shell construction with captivated hardware.
Sunkye’ has also developed custom designed Nano D connectors:
High density circular Nano D connectors.
Custom Mil Spec Nano D connectors available on request.
If you want to know more kinds of d sub connector, please visit our website.
100% Scoop- -proof to ensure no damage to the contacts in a blind mating application
With grounding reeds to strengthen emi/rfi shielding
Excellent performance of shock & vibration resistance
Good performance of fluid resistance
Widely used in aerospace, aviation & military system, especially for high impact vibration environment

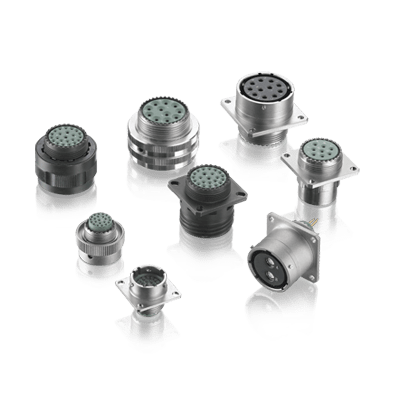

MIL-DTL-38999 (formerly MIL-C-38999) describes four series of miniature, high density, bayonet, threaded, or breech coupling, circular, environment resistant, electrical connectors using removable crimp or fixed solder contacts, and are capable of operation within a temperature range of -65 to +200 degrees Celsius. Series III connectors are suitable for blind mating areas, and provide high-vibration characteristics at elevated temperature and are suitable for SWAMP areas with the proper connector accessories; (https://en.wikipedia.org/wiki/U.S._Military_connector_specifications)
Mechanical Performance of Sunkye MIL-DTL-38999-iii Connector
Sinusoidal Vibration : 10-50Hz, speed 254mm/s
Mil-DTL-38999 Series III connector is a high-performance cylindrical connector that is designed for both general purpose and harsh environment applications. It adopts an enhanced “one turn” coupling system and self-locking screw thread to improve the durability of the coupling system, while the thicker wall and larger coupling surface area increase the strength and impact resistance. 38999 Series III connector can also be used for various shell materials and finishes (anode, zinc cobalt, aluminum, electroless nickel plating, olive cadmium, etc.).
For more information about MIL-DTL-38999 Series III connectors, click the “PDF Download” button above to see the details in the PDF file. If you have any difficulty searching for products, please contact us and Sunkye will help you find the best components for your application.
If you want to buy mil dtl 55302 series connector, please contact us.
Sunkye is uniquely qualified to deliver turnkey custom solutions and mil spec connectors manufacturer for a complete range of high-performance applications. Our industry-leading materials knowledge, engineering design experience, and testing capabilities are key to achieving reliable service in the most extreme environments. You’ll find a large selection of popular Mil-Spec military connectors such as MIL-DTL-83513 micro connector, MIL-DTL-38999 iii connector, MIL-DTL-32139 nano connector, MIL-DTL-26482 automotive connector, d-sub, micro-d connectors, and more, available in standard or custom configurations of mil connector.
The connector is free mounted, not fixed, and usually mated with a receptacle that has a nut.
Recommended JC (straight slot screw) types of screws.
Tight by a miniature straight screwdriver.
Choosing the JC1 (hex) type of screws, tight by 1.27 mm sub tense screwdriver.
PC tail solder on flexible PCB, PCB thickness is 0.25MAX.
Working temperature environment: -55℃~+125℃.
Machine life: 200times.
Nano Surface Mount USB Connector hardware includes jackscrew or female threaded shells. Applications include down-hole electronics, missile systems, launch vehicles, and satellites. M32139 type dual row nano miniature rectangular connectors. Flex assembly, PCB thru-hole, surface mount, straddle mount or back to back cable configurations. Connector savers and EMI protective cover are also available. Nano miniature dual-row plug and receptacle connectors are offered in titanium, stainless steel or aluminum shells. Straddle connectors are configured with 0.635 mm contact spacing and DWV rating of 250 volts AC. Up to 11 contact layouts are available with three wire type options including Ultra lightweight insulation with gold-coated high strength copper; extruded PTFE insulation with silver coated copper, and cross-link modified ETFE insulation with high strength silver coated copper.
Sunkye Nano sealed connector series features gold alloy Twist Pin contacts, Glass-sinter sealed can withstand high temperature and high voltage.
The nano circular connectors can meet oil exploration and other harsh environment applications. This series products widely applied in the military, land ground defense, air or areas.
Furthermore, Sunkye fully tests its hermetic Nano-D solutions to provide reliability and satisfaction to its customers. Helium leak rate is the most common and most reliable method to quantify a small leak. Based on its expertise, Sunkye can also design tailor-made nano circular connectors to fit your application needs.
Hermetic sealed PCB connectors are used in applications where an enclosure needs to be isolated from the outside environment. Panel feed-through is the main application for this type of connector. In the vast majority of applications, the use of a hermetic encapsulate offers sufficient levels of hermeticity at a reasonable price. Only extreme environments require glass-to-metal sealing.
