These Micro-D crimp style electrical connectors feature gold-plated Becu Twist Pin contacts for best performance, the sectional area of cable:0.1mm2~0.15mm2, 0.07mm2.

Sunkye R04A Mil Spec Crimp Style Connector

Sunkye R04J MIL-DTL-83513 Micro D-Sub Crimp Type Connectors

Sunkye R04 MIL-DTL-83513 Micro D-Sub Crimp Connectors

Description of Micro Mini Connectors

An electrical crimp is a type of solder less electrical connection. Micro crimp socket connector are typically used to terminate stranded wire. Crimping is normally performed by first inserting the terminal into the crimp tool. The terminal must be placed into the appropriately sized crimp barrel. Crimp-on connectors are attached by inserting the stripped end of a stranded wire into a portion of the connector, which is then mechanically deformed/compressed (crimped) tightly around the wire. Sunkye Micro crimp style connectors matching with standards MIl-DTL-83513 and accept standard jackscrews and jackpots, making it ideal for flex-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc.

Performance of Micro Crimp Connectors

Contact Pitch * 0.050˝ (1.27 mm)

TEMPERATURE RANGES *

– STANDARD    -55°C / +150°C

– HIGH TEMP    -55°C / +200°C

Vibration * 10Hz-2000Hz, 196m/s2

Contact arrangements of Micro Crimp Connectors

Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts

Plastic shell: 9, 15, 21,25,31,37, 51 contacts

Introduction of Micro Crimp Connectors

Series * Micro D Connector

Terminal Mounting * Crimping Cable Assembly

Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating

Thickness of Gold plating * ≥1.27micron

TWIST PIN * Male contact, fitted to plug connector.

Socket * Female contact, fitted to socket connector (also known as socket).

Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)

Insert * Moulded insulation housing, separating each connection.

Interfacial Seal * Fitted to socket connector only

Shell *Connector metal body plated nickel or cadmium.

Jackscrew *High or low profile, hexagonal socket or slotted head.

Jackpot* Mates with jackscrew.

Cable * AFR250 (PTFE) MIL-DTL-681

Wire length * ≤6 meters (Recommend)

Standard crimp style connectors * Manufactured to the standard dimensions and specifications.

Special crimp style connectors * A standard connector modified to meet specific requirements.

Custom-made crimp style connectors * Designed to meet specific customer requirements.

Pigtail crimp style connectors * Connector with insulated or uninsulated wires.

Harness * Multi-branched cable assembly.

LCP * Liquid Crystal Polymer.

Potting * Epoxy compound used as an encapsulant.

Frequently asked questions about Micro Crimp Socket Connector

Are crimp style connectors good?

Good micro crimp style connectors can be used on solid or stranded conductors, and provides a good mechanical and electrical connection.

Is it better to solder or crimp?

Crimping offers stronger, more reliable connections than soldering. Soldering uses heated metal to join the cable to the connector. Over time, this filler metal will degrade, which may cause the connection to fail. Most electricians will agree thatcrimping is also easier than soldering.

What is micro crimp style connectors used for?

Crimp connections are used typically to fix connectors, such as BNC connectors, to coaxial cables quickly, as an alternative to soldered connections. Typically the maleconnector is crimp-fitted to a cable, and the female attached, often using soldered connections, to a panel on equipment.

If you want to know more about how to crimp wire pin connectors, please visit our website.

Now the price of mil spec electrical connectors is reasonable, anything you need, please contact us.

Sunkye Nano Horizontal Mounted Crimp Connector Series

Contact number: 9, 15, 21, 25, 31, 37, 51, 65, 69 is available.

High Density, Micro, Light, Highly Reliable.

Horizontal mounted crimp connection.

The connector with connects nut that usually mated with a connector which has locking screw.

Working temperature environment: -55℃~+125℃.

Machine life: 200times.

Sunkye has also developed custom designed Nano-D connectors:

High density circular Nano-D connectors.

Special Nano-D connectors available on request.

Different configurations of Nano Horizontal Connector

Sunkye’s range of Nano-D connectors is available in several different configurations:

Nano-D rectangular connectors for cables.

Nano-D rectangular connectors for PCBs.

EMI versions.

High density Micro-D connectors.

Nanos require a minimal amount of board space on flex circuits and rigid circuit boards. The benefit with twist pin contacts (plug) matching with the socket in free mounted crimping, widely apply for the different ultra mini type solutions.

Now the price of d sub connector is reasonable, anything you need, please contact us.

The sealing ring of the miniature circular connectors is 360 degrees, which is generally used for remote sensors, and can also connect the instrument to the panel of the equipment.

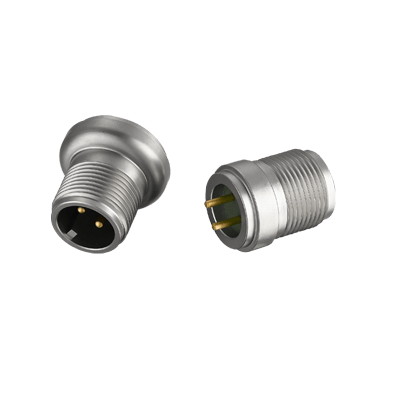

Brief Introduction of Sunkye D109 Glass-Sinter Sealed Mini Circular Connector

Contacts: 2pins

Glass-sinter sealed

Withstand high temperature and high voltage

Application: oil exploration and other harsh environment application.

Standard: E/SC-A(3)29-2006

Specification of Sunkye D109 Glass-Sinter Sealed Circular Connector

Withstand voltage ≥1200Vrms

Insulation resistance ≥ 5000MΩ (500Vdc)

Leakage: 1x 10-9 Pa·m3/S

Salt spray: 96hours

As one of military connector manufacturers, we will do our best to meet all the needs of customers.

Good performance of environment resistance

216 kinds of anti-misoperation styles

High density up to 800 signal contacts

Low insertion force contacts

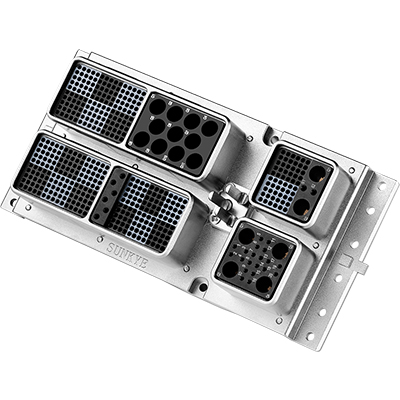

Brief introduction of Sunkey ARINC 600 Spec Rack & Panel Rectangular Connector

Mounting panel are insulator modules for free collocation.

Apply to aviation and military equipment cabinet

Be compatible with arinc 600 backshell to provide protection against harsh operating conditions.

Accord to ARINC 600 Specification

Contacts: signal, power, coaxial, tripe coaxial, optical fiber 2 pin differential, 4 pin differential

Standard: ARINC 600 standard

Specification of Sunkey ARINC 600 16 Rack & Panel Rectangular Connector

1. Material and surface treatment

ltem	Material	Plating
Shell	Aluminum alloy	——
insulator	PPS plastic	——
Contact	Copper alloy	Gold-plated
Encapsulant & sealed ring	Silicon rubber	——

2. Mechanical properties

Durability: 500 times

Vibrations: 10Hz~ 2000Hz, 196 m/s²

Shock: 490 m/s²

Insertion and extraction force:

                       type 1 connector: ≤120 N;

                       type 2 connector:≤267 N;

                       type 3 connector:≤467 N;

As a connector manufacturing co, we can provide high quality d sub connector for sale, anything you need, please contact us.

Mil spec connectors, also called military grade connectors/mil grade connectors or military type connectors or military standard connectors or military power connectors, have been developed to satisfy the market requirements for ultra-tiny size, high performance, great quality, and top qualified customized connector. Sunkye mil style connector is widely applied for the board to board, system to system, application to application, equipment to equipment. Specially designed for extreme environments like the defense industry, but our connectors military can also be used in a variety of commercial tasks. Our automotive terminal connectors can withstand the harsh conditions of the road and off-road transportation. The combination of Sunkye’s mil grade connectors provides reliable solutions for improving the connectivity of critical

MIL-DTL-83513 Micro D Connectors

The Sunkye family of TwistPin equipped Micro-D subminiature mil grade connectors to offer outstanding mating performance, durability, and minimal contact resistance. Sunkye Micro D type mil grade connectors feature high-density micro TwistPin contacts set on 1.27mm centers in arrangements from 9 to 130 contacts. They are available with insulated and uninsulated wire, PCB, solder cup and flex terminations and are supplied as MIL-DTL-83513 or commercial variations. The standards of our military power connectors include 83513 Micro-D and COTS connectors provide a reliable solution for all high-performance interconnect requirements including high temperature and hermetic applications.

MIL-DTL-32139 Nano D Connectors

The MIL-DTL-83513 and MIL-DTL-32139 specifications define the minimum acceptable performance levels for Micro-D and Nano miniature connectors. While the specs are rigid in their performance benchmarks, manufacturers are given considerable leeway when it comes to contact design, crimp fabrication, contact finish and material selection. Stamped and formed contacts, for example, are widely used in Micro-d connectors due to their low cost and ease of manufacture. But independent testing clearly shows that Twist Pin style contacts provide superior performance in such areas as high-temperature tolerance, contact retention and crimp strength. If you have already made the decision to use either a Micro-D or Nano military specification connector because its ruggedized performance outweighs the potential cost-savings realized in a lesser-caliber connector, then you owe it to yourself to understand the very real differences between stamped pins and the Sunkye Twist Pin Contact System.

Twist Pin Connectors

Mil grade connectors with reduced pin spacing (less than 0.381mm) can save product design engineers much-needed PCB real estate. Sunkye answers the call with a series of Micro D (1.27*1.1mm) & Nano D (0.635*1.02mm) metric sockets and pins headers available in vertical and right angle configurations, with SMT and through-hole termination.

All Sunkye connectors are MIL-DTL compliant and are assembled with precision machined Becu twist pins assembled into high-temperature insulators. Through the combination of right angle pin headers plugged into vertical sockets, customers can create perpendicular mate configurations.

Automotive Electrical Connectors

Sunkye automotive connector allows customers to customize the configuration, make it easy to assemble, and further enhance flexibility, the ability to integrate local cables and components, and the ability to adapt to harsh environments.

If you want to know more about military connector specifications, please visit our website.

Sunkye Hermetic Sealed Connectors enable efficient electrical signal and power transmission in severe situations like high temperature high pressure and highly corrosive chemicals.

Glass-to-metal sealing is a technique to hermetically insulate electrical conductors that pass from one side of a barrier to the other. The glass melts to both the package and pin, it can act as an airtight barrier and, in the meantime provide insulation between the housing and the pins. In the oil and gas field, as hermetically sealed feedthroughs used to conduct power or signals through the metal walls of vessels of liquefied gas tanks, they must operate reliably for the long term.

Glass-to-metal seals can be manufactured for high-temperature high-pressure connectors onshore and offshore, this type of seals are suitable for high-pressure applications (up to 60,000psi). High-temperature operation from -55 degrees to 350 degrees.

Glass to metal seal applications in Oil and gas fields are sub-sea cable termination & condition monitoring, containment seal/fire barrier and wireline tools (measurement/logging whilst drilling), etc. So, it is true that the feedthroughs require hermetic or airtight seals that can withstand severe conditions such as high temperature, high pressure, vibration, moisture, and difficult chemical environments.

Sunkye High-temperature high-pressure glass to metal sealed military connectors are protected against extreme conditions and are engineered for very high reliability. The glass is a good electrical insulator and it has low thermal conductivity, along with the capacity to withstand high operational pressure and temperature. The housing material is Kovar, this type of matched seal have the advantage that only small levels of residual stress are present and the feedthrough can withstand very high temperatures.

Random vibration:10Hz-2000Hz, 0.3G2/Hz, acceleration 20G, 175℃ .4h on direction X, Y, Z.

Shock:490m2/s, 11ms

Endurance: 500 cycles

Dielectric withstanding voltage: 1000VDC, 60s, leak current≤ 5mA

Normal temperature insulate resistance:≥5000MΩ (500VDC,normal-tem.)

High temperature insulate resistance: ≥500MΩ (500VDC,200℃)

Rated current: 1A continuous current

Temperature range: -55℃ to +200℃

Operating pressure: 0 MPa to 140MPa

High temperature life: 200℃,600h

 Temperature shock: -55℃ to +200℃,15 cycles, the temperature switching time is ≤ 15 min

Salt spray: 48h

Air leak: helium leak test ≤ 1×10-3Pa. cm3/s

High temperature  high pressure:140 MPa,200℃,10h

In general, glass-metal seals application under extreme high temperature and high pressure environment have certain limitations. Although more and more new materials appear, glass-metal seal are still widely used in various fields as superior materials.

Sunkye is uniquely qualified to deliver turnkey custom solutions and Mil-Spec military connectors manufacturer for a complete range of high-performance applications. Our industry-leading materials knowledge, engineering design experience, and testing capabilities are key to achieving reliable service in the most extreme environments. You’ll find a large selection of popular Mil-Spec military electrical connectors such as MIL-DTL-83513 micro connector, MIL-DTL-38999 iii connector, MIL-DTL-32139 nano connector, MIL-DTL-26482 automotive connector, d-sub, micro-d connectors, and more, available in standard or custom configurations of mil connector.

Ⅰ. What is an electrical connector?

An electrical connector is a device that connects two active devices to transmit current or signals. A connector is a detachable element (except for adapters) that is usually installed on the cable supplier or equipment for the electrical connection of the transmission line system, that is, a device that connects two active devices to transmit current or signals.

Ⅱ. The function of the electrical connector

The role of the electrical connector is very simple: it builds a bridge of communication between the blocked or isolated circuits in the circuit, so that the current can flow and the circuit can realize the predetermined function.

Electrical connectors are an indispensable part of electronic equipment. Observing along the path of current flow, you will always find one or more electrical connectors. The form and structure of electrical connectors are ever-changing. There are various types of connectors with different application objects, frequencies, power, and application environments, such as multi-wire electrical connectors.

Generally speaking, what the electrical connector is connected to is not limited to current. In today’s rapid development of optoelectronics technology, the carrier of transmitting signals is light in the optical fiber system. Glass and plastic replace the wires in ordinary circuits, but light Connectors are also used in signal paths, and their functions are the same as electrical connectors.

Ⅲ. The characteristics and advantages of electrical connectors

1. Improve the production process

The connector simplifies the assembly process of electronic products. It also simplifies the mass production process;

2. Easy to repair

If an electronic component fails, the failed component can be quickly replaced when an electrical connector is installed;

3. Easy to upgrade

With the advancement of technology, components can be updated when electrical connectors are installed, and new and more complete components can be used to replace the old ones;

4. Improve design flexibility

The use of electrical connectors allows engineers to have greater flexibility when designing and integrating new products and when composing systems with components.

If you want to know more different types of connectors used in electrical and electronic applic, please visit our website.

As one of connector manufacturers, we can also offer kinds of d sub connector for sale. If you are interested, please contact us.

The connection forms of industrial electrical connectors can be roughly divided into four types, and more types are currently used. Here are four industrial electrical plug types:

Threaded connection

Some types of connections are commonly used for contacts with larger dimensions and the military electrical connector that operate in high vibration environments. This type of connection can be equipped with a fuse to prevent loosening after the connection is completed. The connection is reliable, but the connection is slow.

Bayonet connection

This is a reliable and fast form of connection and disconnection. Most electrical connectors in the form of a card 121 connection have a visual display of proper connection and locking, and can be seen through a small hole on the side of the electrical connector’s connection nut.

In-line connector

This is a versatile form of connection. When the plug and military socket of the electrical connector are connected and disconnected, the moving direction is usually a reciprocating linear motion, without twisting and rotating, and only requires a small working space to complete the loading and unloading. Common plug-in connections come in spherical or pin configurations. Because there is no mechanical labor-saving mechanism in the connection form, once it is inserted incorrectly, the mechanical resistance increases significantly and can be found in time.

Military electrical connector cabinet connection

As one type of the industrial connectors electrical, it was used on some devices and requires a blind connection near the frame. It can make electrical equipment lighter, smaller, easier to maintain and more reliable.

This type of connection prevents the operator from feeling the connection. It is necessary to design an accurate positioning device to avoid forcibly connecting the wrongly inserted micro electrical connectors together, so that the wrong insertion cannot be performed. Cabinet-type electrical connectors are usually designed with floating or resilient contacts to ensure proper connection.

If you want to know more types of mil spec connectors, please visit our website.

Circular connectors play an important role in electronic engineering construction, ensuring the smooth flow of circuits, so they are widely used. At present, there are many types of circular electrical connectors on the market, with various specifications and styles, and there are also many excellent connection technologies. At present, there are four connection methods that are commonly used. Let’s introduce the specific content below!

1. Thread connection method of circular connector

A connection form that is often used by circular connectors that have larger-sized contacts and work in a strong vibration environment. This type of connection can be installed with a fuse to prevent loosening after the connection is completed. This connection form is reliable to use, but the connection and disassembly speed is slow.

2. The bayonet connection method of the circular connector

It is a reliable and rapid connection and separation form. Most card 121 connection style micro circular connectors have a visual indication of proper connection and locking, which can be viewed from the small hole on the side of the circular connector connection nut.

3. The plug-in connection method of the circular connector

is a versatile form of connection. When the plug and socket of the military circular connector are connected and separated, the moving direction is usually a reciprocating linear motion, without twisting and rotating, and only a small working space is required to complete the connection and disassembly.

Common plug-in connections have two structures: balls or pins. Because there is no mechanically labor-saving mechanism in this connection form, once it is mis-inserted, the mechanical resistance will increase significantly, and it can be found in time.

4. Cabinet connection method of circular connector

It is suitable for circular connectors on some equipment that is close to the frame and needs to be connected blindly, which can make electrical equipment lighter and smaller, easier to maintain and more reliable.

This type of connection makes the operator unable to feel the connection, and an accurate positioning device must be designed to avoid forcing the misinserted circular connectors together, making misinsertion impossible. Cabinet circular connectors usually adopt floating or elastic contact design structure to ensure their correct connection.

Sunkye is unique in its ability to provide turnkey custom solutions and manufacturer of military-spec military connectors for a variety of high-performance applications. Our industry-leading materials knowledge, engineering design experience and testing capabilities are key to reliable service in the most extreme environments.

You will find a large selection of popular mil-spec connectors such as MIL-DTL-83513 micro connectors, MIL-DTL-38999 iii connectors, MIL-DTL-32139 nano connectors, MIL-DTL-26482 automotive connectors, d – sub, micro-d connectors, etc., mil connectors available in standard or custom configurations. If necessary, welcome to consult.

If you want to know more types of military connector assembly, please visit our website.

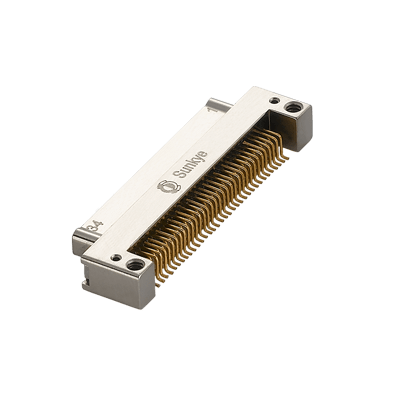

Nano Horizontal SMT Connector for Choice

Description of Nano Horizontal Connector SMT

Sunkye Nano horizontal SMT PCB connector series, contact number: 9, 15, 21, 25, 31, 37, 51, 65, 69. These board to board smt connector (Nano-miniature connectors) offer premium performance and reliability for demanding applications. Usually mated with receptacle/plug which has a locking screw. Working temperature environment: -55℃~+125℃. Machine life: 200 times.

Introduction of Nano Horizontal SMT Connector

Series * Nano D Connector

Terminal Mounting * PCB Type Horizontal SMT connector

PCB Tail Length * Standard & Customized

PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm

Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating

The thickness of Gold plating * ≥1.27micron

TWIST PIN * Male contact, fitted to plug connector.

If you want to know more different smt connector types, please visit our website.
