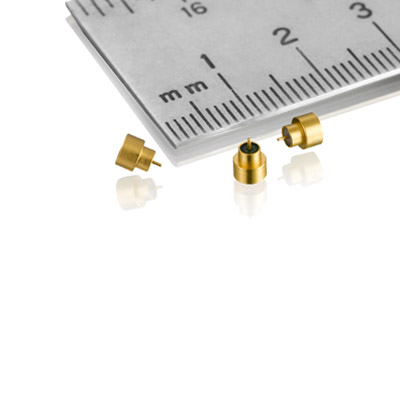

Description of MIL DTL 32139 Twist Pin Receptacle Contacts
It’s matching with Nano D-sub MIL-DTL-32139 Twist Pin Plug Contacts finished with an interconnection system for the application and solutions. The ultraminiature rectangular connector rated for 1 AMP, smallest and lightest mil-qualified M32139 R06 Nano connector series, which is ideally suitable for rugged defense and aerospace wire-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc.
As the need for increased miniaturization is becoming even greater, Sunkye has developed an ultra-high density solution within the existing micro connector size. By putting nano-contacts and nano pitch spacing into an existing micro shell, extremely compact connectors with very high pin counts can be produced in circular, rectangular, plastic and metal forms. Optimal cabling density is achieved in a rectangular ultra-high density connector made with Nano-D contacts and spacing inside a standard Micro-D shell size. Such a connector can accommodate a very large amount of pins while retaining excellent Micro-D reliability.
Most electrical and environmental performances are comparable to those of standard Nano-D connectors (250 Vac, 200°C), combined with the robustness and shielding efficiency of the Micro-D metal shell which is compatible with all the hardware types available for Micro-D pigtails. This same process can be applied to most of the standard and special Micro-D range, making it possible to have ultra-high density versions of PCB connectors, wide flange versions, circular, rectangular and combo style versions with a mix of Micro-D and Nano-D contacts.
Description of MIL-DTL-32139 Twist Pin and Socket Contacts
Super micro connector, Nano D-sub Twist pin technology with 0.635 mm (.025″) contact spacing and nano miniature shells. The ideal solution for applications including aeronautics, space, military, medical and off-shore which require extreme miniaturization, reliability, space or weight saving, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc.
The twist pin connector by its design and performance enables the system to meet the most severe requirements – often significantly more so than stipulated in the MIL-DTL-83513 and MIL-DTL-32139 standards. The male Micro-D contact is made up of 10 strands of beryllium-copper and copper alloy twisted together, welded then bumped. These sprung strands are in fact compressed during insertion into the turned female contact and therefore a high number of electrical contact points are permanently assured while retaining flexibility and ease of insertion/ extraction. The bulged point will be compressed inside the socket during the insertion. Make pair insertion of the twist pin and socket to maintain performance. Both socket contact chamfer and twist contact pin hemispherical radius contribute to ensuring adequate insertion even in case of misalignment.
Sunkye has teamed of twist pin Technology with these custom designed insulators capable of meeting the extreme mechanical and electrical needs in the harshest environments of military/aerospace and industrial applications such as Down Hole Directional Drilling. In addition to circular and rectangular Micro-D connectors and assemblies, Sunkye’ CABLE offers Nano-D connectors and jumpers based on the highly reliable Twist Pin contact technology. This is the connector of choice for any application requiring extreme miniaturization combined with high reliability and is used in a variety of fields from military and medical devices to oil and gas exploration. Nanominiature connectors are based on the Nano-D technology with 0.635 mm (.025″) contact spacing and nano miniature shells. The performance of Sunkye’s Nano-D is fully compliant to the MIL-DTL-32139 specification, giving a guarantee of interchangeability and interminability between suppliers.
As the need for increased miniaturization is becoming even greater, Sunkye’ has developed an ultra-high density solution within the existing micro connector size. By putting Nano contacts and Nano pitch spacing into an existing micro shell, extremely compact connectors with very high pin counts can be produced in circular, rectangular, plastic and metal forms. Optimal cabling density is achieved in a rectangular ultra-high density connector made with Nano-D contacts and spacing inside a standard Micro-D shell size. Such a connector can accommodate a very large amount of pins while retaining excellent reliability.
Most electrical and environmental performances are comparable to those of standard Nano-D connectors (250 Vac, 200°C), combined with the robustness and shielding efficiency of the Micro-D metal shell which is compatible with all the hardware types available for Micro-D pigtails. This same process can be applied to most of the standard and special Micro-D range, making it possible to have ultra-high density versions of PCB connectors, wide flange versions, circular, rectangular and combo style versions with a mix of Micro-D and Nano D contacts.
The ultraminiature rectangular connector rated for 1 AMP, smallest and lightest mil-qualified M32139 R06 Nano connector series.
Now the price of mil spec pins and mil spec contacts is reasonable, anything you need, please contact us.
If you want to know more types of military standard plug, please visit our website.
Sunkye is uniquely qualified to deliver turnkey custom solutions and Mil-Spec military connectors china manufacturer for a complete range of high-performance applications. Our industry-leading materials knowledge, engineering design experience, and testing capabilities are key to achieving reliable service in the most extreme environments. You’ll find a large selection of popular Mil-Spec military connectors such as MIL-DTL-83513 micro connector, MIL-DTL-38999 iii connector, MIL-DTL-32139 nano connector, MIL-DTL-26482 automotive connector, d sub connector, micro-d connectors, and more, available in standard or custom configurations of mil connector.
Connectors for new energy vehicles are a type of connector. They are a type of connectors that have gradually separated from traditional high-voltage and high-current and traditional low-voltage automotive connectors with the development of China’s new energy vehicles in recent years.
Compared with traditional custom high voltage connector and high-current connectors, the working conditions of connectors for new energy vehicles are more complex and changeable, and the reliability of the connectors is higher. Compared with traditional low-voltage automotive power connectors, due to the increased voltage level (At present, the voltage of mainstream systems is higher than 300V DC), which increases the risk of electric shock to the human body and requires higher safety of the connector; therefore, the insulation and protection requirements of the product are improved compared to traditional low-voltage plug-ins.
The role of military grade electrical connectors for new energy vehicles is mainly to ensure the high-voltage interconnection system of the entire vehicle, that is, to build a bridge where the internal circuits are blocked or isolated so that current flows.
The composition of military grade connector for new energy vehicles can be generally divided into three parts: auxiliary structures such as housings, seals, insulation parts, and conductive contact pairs. Through the mating and mutual cooperation between the plug sheath and the socket sheath, the functions of connection and conduction can be achieved.
The high-voltage connector is mainly used in the high-voltage and high-current circuits of new energy vehicles. It works with conductive cables at the same time. It transmits the energy of the battery pack to different parts of the vehicle system through different electrical circuits, such as battery packs, motor controllers, DCDC Converters, chargers and other body electrical units.
Mil/Aero specifications strictly control the design and development of Aeronautical and defense electronic products, up to component-level materials and processes. In many cases, military and aerospace standards are very similar, but there are also differences. The MIL/AERO specification ensures that every component designed in the mission-critical systems of spacecraft and detectors is rigorously tested and validated in the most extreme conditions.
The military and aerospace markets include a variety of applications, such as radar, cameras, vehicular electronics, aeroelectronics, unmanned aerial vehicles (UAV) and so on. Interconnection is the core of all applications in these markets, ensuring peak performance and reliable transmission of power, signals, data and other media. Therefore, these applications need high performance and high reliability military grade electrical connectors that meet strict military and aerospace standards.
Military and aerospace specifications address the characteristics, functions and selection criteria of connectors, including:
1. The ability to withstand extreme temperature, pressure and humidity in the external environment.
2. Shell materials that meet the electrical and mechanical properties.
3. Connector specifications are consistent with application environment and performance requirements to avoid selecting or developing substandard or over-qualified connector products.
4. Select military aerospace connector provided by custom connector manufacturer when it is necessary. It can solve the size limitation and make it easier to integrate connectors into challenging systems.
The characteristics of harsh environment connectors are designed to ensure the best performance in some of the world’s most difficult application areas. Military and aerospace electrical connectors require strict use of certain materials and processes.
Sunkye is a professional and reliable custom connector manufacturer. Contact us now.
There are many connector companies, but we are one of the best choices for you.
The rectangular sealed connector has the advantages of advanced structure, high reliability, and convenient use, so it is used in more and more instruments, meters and other equipment. However, some users report poor contact during use, which makes its use more troublesome.
1. Reasons for poor contact of rectangular sealed connectors
The poor contact of the rectangular sealed connector is due to the internal reasons of the product itself, the poor contact caused by the interconnection of the components, and the poor contact caused by the virtual welding during the production process.
Generally, the pins or terminals of rectangular sealed connectors have a layer of plating, and there are many materials for the plating, such as pure tin plating, gold plating, silver plating, nickel plating, and so on. When the device is in contact, it is mainly the contact between these coatings. Different coating materials have different conductivity and therefore exhibit different contact resistances.
When welding, because the process itself is an alloy process, it is itself a conductor, so the welding itself will not produce poor contact, unless the welding is not good during welding.
Therefore, the good contact of the rectangular sealed connector mainly depends on whether the two contact surfaces are in good contact, which is related to its coating material. Generally, the conductivity of gold is relatively high.
When the surface of the rectangular sealed connector is oxidized, it may affect the contact problem, and the contact pressure of the connector is too small, then the phenomenon of poor contact will occur. The greater the contact pressure, the better the contact. If the elasticity of the hole contact of the connector is not good, the contact pressure will naturally become smaller, and the contact will not be so good.
In order to ensure good contact of the rectangular sealed connector, it is recommended not to store it in the humid or strong acid or alkali environment to avoid oxidation and corrosion. In addition, do not be sloppy or rough during use to prevent the connector joint from being deformed.
2. How to distinguish rectangular sealed connectors?
Rectangular sealed connectors usually have a plastic or metal shell surrounding the contacts, which is embedded in an insulating material to maintain their alignment. These terminals are usually paired with cables, and this structure makes them particularly resistant to environmental interference and accidental decoupling.
In addition to distinguishing by the number of pins, we can also distinguish circular connectors based on manufacturing specifications, sizes, connection angles, and connection and disconnection modes.
① Standards: Military standard connectors usually refer to connectors whose design conforms to German or American military standards;
② The DIN standard includes high-frequency functions and iconic functions, such as protective metal shells and round terminals with notches. This structure can ensure that they are matched with the correct pair;
③ Micro and nano small circular connector have smaller pin and socket diameters and narrower pitch contacts. This structure helps save surface space on the terminal surface and reduces the additional weight of the connector to the component .
On the one hand, the number of 5G base stations in China has increased significantly. 5G communication spectrum is mainly distributed in high frequency bands. The higher the frequency, the faster the signal attenuation, and the smaller the coverage area at the same power.
In the 2G, 3G and 4G era, the spectrum of China’s three major operators is mainly distributed below 2.6GHz, and the spectrum of China Unicom and mobile in the 5G stage is in the 3.4-3.6GHz range. With the increase of frequency, the number of 5G base stations will increase significantly and is expected to reach twice the number of 4G base stations.
On the other hand, the demand for 5G also brings the technological upgrade of standard power connectors. Under the characteristics of 5G low-latency and high-bandwidth transmission, the data transmission volume has been greatly improved, and the traffic density of 5G has been increased to 100 times that of 4G. With the miniaturization and integration of 5G base stations, the space occupied by the connector is further increased. Compression, electromagnetic interference and heat dissipation have also become important issues.
Therefore, 5g connector has higher requirements for the density, transmission rate, heat dissipation, electromagnetic interference resistance and reliability of the connector, and the value of the custom connectors has been further improved.
With the increase in the number of base stations and the increase in technical requirements, the connector market is expected to grow significantly and enter a high-boom cycle.
According to the forecast of the Ministry of Industry and Information Technology of China, domestic operators’ investment in 5G will be 1.5 times that of 4G, and the total investment will reach 1.5 trillion yuan. As for the pace of demand, with the start of 5G construction in 2019, the scale of 5G base station construction will also grow rapidly.
Military connector manufacturers have deep technical accumulation and strong competitiveness, which will fully benefit from the growing demand for connectors in the communications field.
Mil spec connectors, also called military connectors china/mil grade connectors or military style connectors or military standard connectors or military power connectors, have been developed to satisfy the market requirements for ultra-tiny size, high performance, great quality, and top qualified customized connector. Sunkye mil grade connector is widely applied for the board to board, system to system, application to application, equipment to equipment. Specially designed for extreme environments like the defense industry, but our mil spec connectors can also be used in a variety of commercial tasks. Our automotive terminal connectors can withstand the harsh conditions of the road and off-road transportation. The combination of Sunkye’s mil grade connectors provides reliable solutions for improving the connectivity of critical systems.
MIL-DTL-83513 Micro D Connectors
The Sunkye family of TwistPin equipped Micro-D subminiature mil grade connectors to offer outstanding mating performance, durability, and minimal contact resistance. Sunkye Micro D type mil grade connectors feature high-density micro TwistPin contacts set on 1.27mm centers in arrangements from 9 to 130 contacts. They are available with insulated and uninsulated wire, PCB, solder cup and flex terminations and are supplied as MIL-DTL-83513 or commercial variations. The standards of our military power connectors include 83513 Micro-D and COTS connectors provide a reliable solution for all high-performance interconnect requirements including high temperature and hermetic applications.
MIL-DTL-32139 Nano D Connectors
The MIL-DTL-83513 and MIL-DTL-32139 specifications define the minimum acceptable performance levels for Micro-D and Nano miniature connectors. While the specs are rigid in their performance benchmarks, manufacturers are given considerable leeway when it comes to contact design, crimp fabrication, contact finish and materialselection. Stamped and formed contacts, for example, are widely used in Micro-d connectors due to their low cost and ease of manufacture. But independent testing clearly shows that Twist Pin style contacts provide superior performance in such areas as high-temperature tolerance, contact retention and crimp strength. If you have already made the decision to use either a Micro-D or Nano mil grade connector because its ruggedized performance outweighs the potential cost-savings realized in a lesser-caliber connector, then you owe it to yourself to understand the very real differences between stamped pins and the Sunkye Twist Pin Contact System.

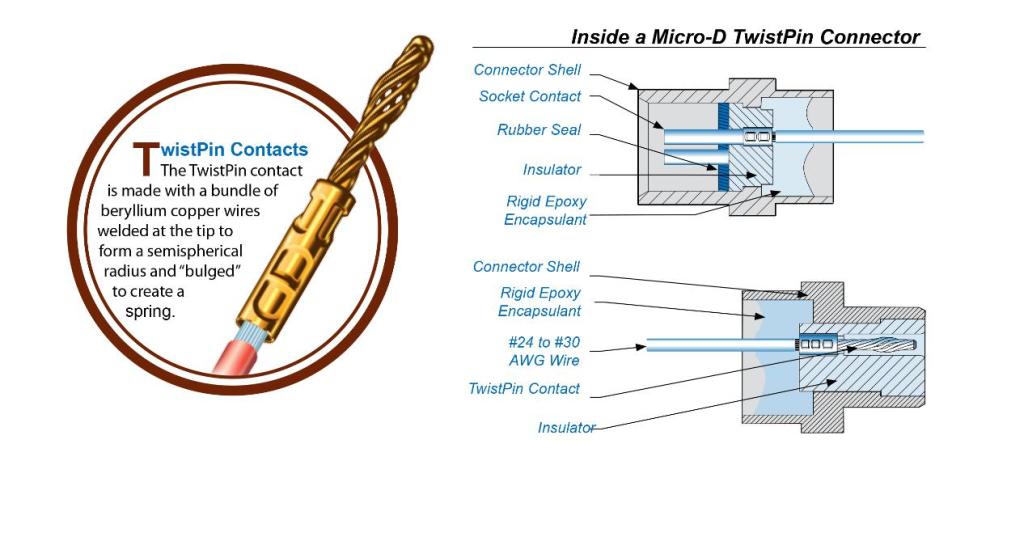

Twist Pin Connectors
Mil grade connectors with reduced pin spacing (less than 0.381mm) can save product design engineers much-needed PCB real estate. Sunkye answers the call with a series of Micro D (1.27*1.1mm) & Nano D (0.635*1.02mm) metric sockets and pins headers available in vertical and right angle configurations, with SMT and through-hole termination.
All Sunkye connectors are MIL-DTL compliant and are assembled with precision machined Becu twist pins assembled into high-temperature insulators. Through the combination of right angle pin headers plugged into vertical sockets, customers can create perpendicular mate configurations.
Types of Sunkye Featured Military PCB Connectors
Sunkye Nano-D Single Row Crimping Connectors For IoT-enabled medical Devices
SUNKYE High Temperature & High Pressure Series Connectors
Nano-D Single Row Connector
Sunkye R013 Micro Strip Connector
Sunkye R068 Micro Strip Connector Automotive Data Connectivity In Vehicle Networks Connector
MIL-DTL-38999 iii Series Small Circular Span Wire Separating Connector
Sunkye R04S Space Grade Micro D Straight To PCB Connector
Sunkye R04S Space Grade Micro D Solder Cup Type Connector
Sunkye R04S Space Grade Micro D Right Angle To PCB Type Connector
Sunkye R04S Space Grade Micro D Crimp Type Connector
Sunkye R04 MIL-DTL-83513 Micro D-Sub Solder Cup Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB S1 Type Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB S Type Connectors
04 MIL-DTL-83513 Micro D-Sub PCB FM Type Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB F Type Connectors
Sunkye R04J MIL-DTL-83513 Micro D-Sub Straight PCB Type Connectors
Sunkye R04J MIL-DTL-83513 Micro D-Sub Solder Cup Connectors
Sunkye R04J MIL-DTL-83513 Micro D-Sub Right Angel to PCB Connectors
Sunkye R04J MIL-DTL-83513 Micro D-Sub Crimp Type Connectors
Sunkye MIL-DTL-32139 Twist Pin Receptacle Contact
Sunkye MIL-DTL-32139 Twist Pin Plug Contact
Sunkye Mil-Dtl-83513 Twist Pin Receptacle Contact
Sunkye R06 Mil Spec Vertical Mounted Crimp Connector
Explore Our Industry & Solutions
Aerospace Electrical Connectors
Connectors are almost everywhere in aerospace applications. Sunkye’s connector uses advanced computer modeling to ensure optimal performance and then designs products that are easier to use, more reliable, and lower in actual cost.
Aerospace Electrical Connectors
Connectors are almost everywhere in aerospace applications. Sunkye’s connector uses advanced computer modeling to ensure optimal performance and then designs products that are easier to use, more reliable, and lower in actual cost.
Military/Defense Connectors
The performance of products in the signal intensive environment depends on their phase stability. Sunkye’s engineers have professional knowledge and rich experience to provide you with better solutions. Come to choose our high quality and professionalism.
Aircraft Connector/UAV Connector
The UAV connector is an important basic component. As a bridge to transmit signal and power, it must pass strict tests before it can be used in aircraft / UAV applications.
Oil And Gas And Marine Connectors
Sunkye produces mil-spec connectors focused on oil, gas, and marine applications that can adapt to the most demanding environments, including extreme temperatures, vibrations, and shocks.
Medical Grade Connectors
Electronic systems in medical devices and probes rely on sensor signals for precise control, diagnosis and treatment. Our connectors are designed and manufactured to strict standards to meet the stringent requirements of medical applications.
Custom Connectors
Sunkye’s customized connector can be designed according to different needs, suitable for different special application environments, and improve industrial differentiation and product competitiveness.
PCB electrical connectors are mounted on the PCB and are typically used for PCB to PCB interconnection, or to transfer to or from the PCB from another source within the unit. Sunkye Military/Space grade miniature PCB connectors qualified with MIL-DTL-83513 standard, with standard jackscrews and jackpots, making it ideal for flex-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, UAV, Radar, defense system etc.
Micro PCB Connectors for Choice
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB F Type Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB S Type Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB FM Type Connectors
Sunkye R04 MIL-DTL-83513 Micro D-Sub PCB S1 Type Connectors
Description of Micro PCB Connectors
A “PCB” or Printed Circuit Board connects electrical components on a conductive track or between pads on the board. Some devices hold more than one PCB and will utilise a variety of PCB to PCB connectors to build a connection between the boards. Designed to connect printed circuit boards in a variety of settings, high voltage PCB connectors securely transmit signal and power between boards.
Performance of Micro PCB Connectors
Contact Pitch * 0.050˝ (1.27 mm)
TEMPERATURE RANGES *
– STANDARD -55°C / +150°C
– HIGH TEMP -55°C / +200°C
Random vibration * Power spectrum density 0.4G2/Hz root mean square value of total acceleration 23.1G
Shock: 735m/s2
Contact arrangements of Micro PCB Connectors
Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts
Plastic shell: 9, 15, 21,25,31,37, 51 contacts
Introduction of Micro PCB Connectors
Series * Micro D Connector
Terminal Mounting * PCB Type Including Straight to PCB and 90°angle to PCB type
PCB Tail Length * Standard 3mm
PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm
Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating
The thickness of Gold plating * ≥1.27micron
TWIST PIN * Male contact, fitted to plug connector.
Socket * Female contact, fitted to socket connector (also known as socket).
This type of device is designed to provide screening, sealing, and reparability. Micro-D EMI backshells connect cable shields to Micro-D connectors, providing strain relief and mechanical protection. Engineered to help resist corrosion and fit a wide range of circular connectors, backshell and adapter components help protect connections from mechanical wear, environmental conditions, and electromagnetic interference (EMI). These backshells are made out of aluminum alloy. Electroless nickel is the most widely used finish. These backshells are compatible with industry- standard metal shell M83513 type connectors. These MILDTL 83513 backshells are available with and without screen termination, providing long-term, high performance in sealed and unsealed electronics systems.
Removable jackscrews according to MIL-DTL-83513/05
For pigtail crimping & solder cup connectors only.
2 sizes of hardware: one version for shell sizes from 9 to 69 ways and another version for the 100-way shell size.
1 kit consists of 2 screws and 2 e-rings.
Hex socket head or slot head.
Material: passivated 300 series stainless steel
Contact arrangements of Micro Wireless Backshell Connector
Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts
Plastic shell: 9, 15, 21,25,31,37, 51 contacts
MICRO-D EMI BACKSHELL of Micro-D Connector Backshell
– Micro-D aluminum backshell for EMI termination.
– Supplied with stainless steel hardware.
– Various entry sizes & shapes.
– Available for standard and micro termination.
– Shell size from 9 to 100.
Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating
The thickness of Gold plating * ≥1.27micron
TWIST PIN * Male contact, fitted to plug connector.
Socket * Female contact, fitted to socket connector (also known as socket).
Insert * Moulded insulation housing, separating each connection.
Interfacial Seal * Fitted to socket connector only
Shell *Connector metal body plated nickel or cadmium.
Jackscrew *High or low profile, hexagonal socket or slotted head.
Jackpot* Mates with jackscrew.
LCP * Liquid Crystal Polymer.
Potting * Epoxy compound used as an encapsulant.
Introduction of Micro Wireless Backshell Connector
Series * Micro D Connector
Terminal Mounting * Crimping wireless connector
Standard connector * Manufactured to the standard dimensions and specifications.
Special connector * A standard connector modified to meet specific requirements.
Custom-made connector * Designed to meet specific customer requirements.
Pigtail connector * Connector with insulated or uninsulated wires.
Harness * Multi-branched cable assembly.
Sunkye is uniquely qualified to deliver turnkey custom solutions and Mil-Spec military connectors china manufacturer for a complete range of high-performance applications. Our industry-leading materials knowledge, engineering design experience, and testing capabilities are key to achieving reliable service in the most extreme environments. You’ll find a large selection of popular mil spec connectors such as MIL-DTL-83513 micro connector, MIL-DTL-38999 iii connector, MIL-DTL-32139 nano connector, MIL-DTL-26482 automotive connector, d-sub, micro-d connectors, and more, available in standard or custom configurations of mil connector.
In addition to the standard range of Micro-D connectors and assemblies, Sunkye is able to offer small electrical pin nano connectors and assemblies based on the highly reliable Twist Pin contact technology.
Different types of MIL-DTL-32139 Nano D Connectors
Nano Straight PCB Connector
Nano Free Mounted Crimp Connector Series
Nano-D Single Row Connector
Nano Horizontal Mounted Crimp Connector
Nano Backshell Connector
Nano Crimp Connector
Nano Horizontal SMT Connector
Nano Right Angle PCB Connector
Description of MIL-DTL-32139 Nano D Connectors
MIL-DTL-32139 Nano D sub connectors are ideal solutions for applications including aerospace, military, industrial, medical or off-shore which require extreme miniaturization, space or weight saving and reliability. Sunkye’s nano miniature D sub connectors meet the requirements of MIL-DTL-32139.
The Twist Pin contact of mini electrical connector by its design and performance enables the system to meet the most severe requirements – often significantly more so than stipulated in the MIL-DTL-83513 and MIL-DTL-32139 standards. The male Micro-D contact is made up of 10 strands of beryllium-copper and copper alloy twisted together, welded then bumped. These sprung strands are in fact compressed during insertion into the turned female contact and therefore a high number of electrical contact points are permanently assured while retaining flexibility and ease of insertion/extraction. The bulged point will be compressed inside the socket during insertion. Insertion and retention performance of the twist pin and socket mated pair. Both socket contact chamfer and twist pin hemispherical radius contribute to ensuring adequate insertion even in case of misalignment. As a professional nano connector supplier, Sunkye offers top-quality nano connectors for sale. Feel free to contact us for more information.
Different configurations Sunkye’s range of Nano D sub connectors is available in several different configurations:
– Rectangular Nano D-sub connectors for cables.
– Rectangular Nano D-sub connectors for PCBs.
– EMI versions.
– High-density microminiature D connectors.
Characteristics of MIL-DTL-32139 Nano Miniature Connectors
– 0.635 mm (.025″) contact spacing (double the density of a Micro-D).
– The number of contacts: 9, 15, 21, 25, 31, 37 and 51.
– double row.
– High-reliability twist pin contacts.
– Metal shell construction with captivated hardware.
Sunkye has also developed custom-designed Nano miniature connectors:
– High density circular Nano miniature connectors.
Special nanominiature connectors available on request.
Sunkye is uniquely qualified to deliver turnkey custom solutions and Mil-Spec military connector assembly manufacturer for a complete range of high-performance applications. Our industry-leading materials knowledge, engineering design experience, and testing capabilities are key to achieving reliable service in the most extreme environments. You’ll find a large selection of popular Mil-Spec military connectors such as MIL-DTL-83513 micro connector, MIL-DTL-38999 iii connector, MIL-DTL-32139 nano connector, MIL-DTL-26482 automotive connector, d-sub, micro-d connectors, and more, available in standard or custom configurations of mil connector.
