The Sunkye family of TwistPin equipped Micro-D subminiature connectors to offer outstanding mating performance, durability, and minimal contact resistance. Sunkye Microminiature-D Connectors feature high-density micro TwistPin contacts set on 1.27mm centers in arrangements from 9 to 130 contacts. They are available with insulated and uninsulated wire, PCB, solder cup and flex terminations and are supplied as MIL-DTL-83513 or commercial variations. Our mil dtl 83513 connectors  and COTS connectors provide a reliable solution for all high-performance interconnect requirements

Description of MIL-DTL-83513 connector

By its very design, the Micro-D type connector system meets all the requirements of robustness, durability, low contact resistance, high current, dielectric strength, shock, and vibration. With 1.27 mm (.050″) contact spacing, micro d subminiature, half the size of D type connectors (D series connectors), represent an excellent solution for saving both space and weight. In addition to a complete range of micro d subminiature connectors to 83513 d sub vs micro d, Sunkye also offers Micro-D PCB connectors and cable assemblies in both metal and plastic bodied versions. With its many possible configurations, the technology of micro electrical connectors is perfectly suited to a multitude of systems where weight, miniaturization or signal transmission integrity is paramount: applications benefiting from this technology include everything from missiles and their guidance systems, through oil well drilling tools to medical devices, satellites, and scientific research. For very specific applications such as medical MRI scanners or low magnetic field detection systems, Sunkye has developed a range of non-magnetic connectors using new materials and surface treatments, avoiding ferromagnetic materials. Hermetic micro d connectors are also offered for applications where an enclosure needs to be fully sealed from the outside world.

By the unique design and performance, Sunkye micro d connectors equipped with twist pin contact is enabled to meet the most severe requirements, often significantly more so than stipulated in the mil 83513 and MIL-DTL-32139 standards. The male micro D contact is composed of 10 strands of copper alloy and beryllium-copper twisted together, which is welded then bumped. A high number of electrical contact points are permanently assured while retaining flexibility and ease of insertion/ extraction, because during insertion into the turned female contact the 10 sprung strands are compressed. To keep insertion and retention performance of the twist pin and socket mated pair, the bulged point will be compressed inside the socket during insertion. Meanwhile, the exit of socket contact chamfer and twist pin hemispherical radius ensures adequate insertion even in case of misalignment.

Range of mil dtl 83513 contacts which is covered by the mil dtl 83513 standard is ideally suited to equipment and applications where weight, miniaturization and long term performance are required, so in these aspects it is a model recommended by micro d connectors manufacturers. It is available: In 10 contact arrangements (9 to 100 contacts) for rectangular Micro-D connectors

Frequently asked questions about mil dtl 83513 connector

What is mil dtl 83513 Specification?

MIL-DTL-83513, (formerly MIL-C-83513) describes polarized shell, micro-miniature, rectangular electrical connectors with solder or non-removable crimp contacts. Featuring of high current capability, low contact resistance, high dielectric strength and excellent resistance to shock and vibration, while offering a high pin density, small size and lightweight body, the m83513 micro d connectors meet the severe requirements of different applications and harsh environments, which is mechanically robust and durable. The connector is often referred to as a Micro-D connector system, which can be applied to a multitude of systems including aerospace avionics, radars, advanced soldier technology systems, military Global Positioning Systems, medical devices and down-hole drilling tools, etc., in which weight, miniaturization or signal transmission integrity are paramount. The Micro-D formfactor has become so popular among engineers and systems designers that many manufacturers have begun to offer high speed (up to 10Gbps) and modular versions of the connector.

What is a 83513 micro D connector used for?

The D-subminiature or D-sub is a common type of electrical connector commonly used in computers, Communications ports, Network ports, Game controller ports, etc. D-sub connectors feature parallel rows of connector pins, surrounded by a metal shield. The shield is shorter on one side, resembling the D English letter. A smaller type of connector derived from the D-sub is called the microminiature D, or micro-D. It is about half the length of a D-sub and its primary application is space-grade technology.

Except MIL DTL 83513, What are other Mil Spec Connector?

Mil Spec connector are now used in aerospace, industrial, marine, and even automotive commercial applications. For electrical connectors, except MIL DTL 83513, there are many Military Standards including MIL DTL 32139, MIL DTL 38999, MIL DTL 26482, MIL-DTL-83538 standard, etc. For fiber optic connectors, there are two main standard: MIL-C-83522 and MIL-DTL-83526. For alternative connectors, MIL-PRF-29504, MIL-PRF-2887, MIL-PRF-39012, MIL-PRF-31031, MIL-PRF-49142, MIL-PRF-64266 are widely used.

For more information about micro d connector dimensions, please feel free to contact us!

In addition to the standard range of Micro-D connectors and assemblies, Sunkye is able to offer small electrical pin Nano-D connectors and assemblies based on the highly reliable Twist Pin contact technology.

Different types of MIL-DTL-32139 Nano D Connectors

Description of MIL DTL 32139 Nano D Connector

MIL-DTL-32139 Nano D sub connector are ideal solutions for applications including aerospace, military, industrial, medical or off-shore which require extreme miniaturization, space or weight saving and reliability. Sunkye’s nanoconnectors meet the requirements of MIL-DTL-32139.

The Twist Pin contact of mini d connector by its design and performance enables the system to meet the most severe requirements – often significantly more so than stipulated in the MIL-DTL-83513 and MIL-DTL-32139 standards. The male Micro-D contact is made up of 10 strands of beryllium-copper and copper alloy twisted together, welded then bumped. These sprung strands are in fact compressed during insertion into the turned female contact and therefore a high number of electrical contact points are permanently assured while retaining flexibility and ease of insertion/extraction. The bulged point will be compressed inside the socket during insertion. Insertion and retention performance of the twist pin and socket mated pair. Both socket contact chamfer and twist pin hemispherical radius contribute to ensuring adequate insertion even in case of misalignment. As a professional nano connector supplier, Sunkye offers top-quality nano connectors for sale. Feel free to contact us for more information.

Different configurations Sunkye’s range of Nano D-sub connectors is available in several different configurations:

– Rectangular Nano D-sub connectors for cables.

– Rectangular Nano D-sub connectors for PCBs.

– EMI versions.

– High-density microminiature D connectors.

Characteristics of MIL-DTL-32139 Nano Miniature Connectors

– 0.635 mm (.025″) contact spacing (double the density of a Micro-D).

– The number of contacts: 9, 15, 21, 25, 31, 37 and 51.

– double row.

– High-reliability twist pin contacts.

– Metal shell construction with captivated hardware.

Sunkye has also developed custom-designed Nano miniature connectors:

– High density circular Nano miniature connectors.

Special nanominiature connectors available on request.

Micro Wire Backshell Connector for Choice

Description of Micro Wire Backshell Connector

Different backshell types are available for Split EMI/RFI/filter or accommodate larger wire bundles or screw locks allowing the connectors to be fully mated before the hardware is fastened, or for wire or cable strain relief, Sunkye Mil DTL 83513 backshell electrical connectors provide perfect performance, which widely used in military area, aerospace, aviation, electricals hip-building, defense system, etc.

MICRO-D EMI BACKSHELL of Wire Backshell Connector

Micro-D aluminum backshell for EMI termination.

Supplied with stainless steel hardware.

Various entry sizes & shapes.

Available for standard and micro termination.

Shell size from 9 to 100.

Removable jackscrews according to MIL-DTL-83513/05

For pigtail crimping & solder cup connectors only.

2 sizes of hardware: one version for shell sizes from 9 to 69 ways and another version for the 100-way shell size.

1 kit consists of 2 screws and 2 e-rings.

Hex socket head or slot head.

Material: passivated 300 series stainless steel

Contact arrangements of Micro D Backshell Connector

Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts

Plastic shell: 9, 15, 21,25,31,37, 51 contacts

Introduction of Micro D Wire Backshell Connector

Series * Micro D Connector

Terminal Mounting * Crimping connector

Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating

The thickness of Gold plating * ≥1.27micron

TWIST PIN * Male contact, fitted to plug connector.

Socket * Female contact, fitted to socket connector (also known as socket).

Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)

Insert * Moulded insulation housing, separating each connection.

Interfacial Seal * Fitted to socket connector only

Shell *Connector metal body plated nickel or cadmium.

Jackscrew *High or low profile, hexagonal socket or slotted head.

Jackpot* Mates with jackscrew.

LCP * Liquid Crystal Polymer.

Potting * Epoxy compound used as an encapsulant.

Cable * AFR250 (PTFE) MIL-DTL-681

Wire length * ≤6 meters (Recommend)

Standard connector * Manufactured to the standard dimensions and specifications.

Special connector * A standard connector modified to meet specific requirements.

Custom-made connector * Designed to meet specific customer requirements.

Pigtail connector * Connector with insulated or uninsulated wires.

Harness * Multi-branched cable assembly.

Sunkye International was originally developed in the early 1950s and was one of the Twist pin/ Micro D/Nano D connector companies to license this technology and improve it.

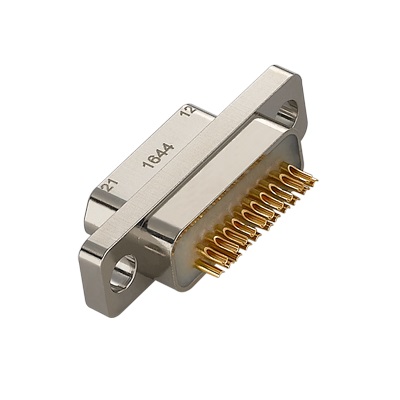

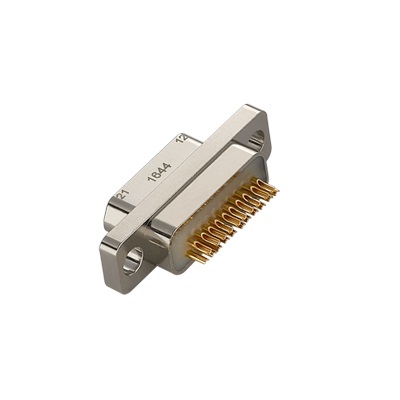

MICRO SOLDER CUP CONNECTORS

Sunkye Micro D solder cup terminal pin connector with the rectangular package, feature gold-plated BeCu Twist Pin contacts for best performance. Sunkye Micro solder cup connectors matching with MIL-DTL-83513 and accept standard jackscrews and jackpots, making it ideal for applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc.

Micro Solder Cup Connectors for Choice

Sunkye R04A Mil Spec Series Solder Cup Connector

Sunkye R04J MIL-DTL-83513 Micro D-Sub Solder Cup Connectors

Sunkye R04 MIL-DTL-83513 Micro D-Sub Solder Cup Connectors

Description of Micro Solder Cup Connectors

METAL SHELL of Micro Solder Cup Connectors

Metal shell recommended for environmental and EMI applications.

Ideal for prototyping or where pigtail type connectors cannot be used.

PLASTIC SHELL of Micro Solder Cup Connectors

Ideal for prototyping or where pigtail type connectors cannot be used.

Plastic connector and solder cup contacts.

Ideal for prototyping or where pigtail type connectors cannot be used.

Operating temperature: 150°C or 200°C.

9 to 51 contacts.

Contact arrangements of Micro Solder Cup Connectors

Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts

Plastic shell: 9, 15, 21,25,31,37, 51 contacts

Introduction of Micro Solder Cup Connectors

Series * Micro D Connector

Terminal Mounting * Solder Cup type

Contacts *Twist solder cup terminal PIN contacts, high-density interconnection, Beryllium copper (BeCu), gold over nickel plating

The thickness of Gold plating * ≥1.27micron

TWIST solder cup terminal PIN * Male contact, fitted to plug connector.

Socket * Female contact, fitted to socket connector (also known as a socket).

Insulator* 20% GFPPS (20% glass-filled polyphenylene sulfide)

LCP * Liquid Crystal Polymer.

Potting * Epoxy compound used as an encapsulant

Insert * Moulded insulation housing, separating each connection.

Interfacial Seal * Fitted to socket connector only

Shell *Connector metal body plated nickel or cadmium.

Jackscrew *High or low profile, hexagonal socket or slotted head.

Jackpot* Mates with a jackscrew.

Standard connector * Manufactured to the standard dimensions and specifications.

Special connector * A standard connector modified to meet specific requirements.

Custom made connector * Designed to meet specific customer requirements.

Solder cup connector * Connector with solder type contacts, usually used for prototyping.

Sunkye is uniquely qualified to deliver turnkey custom solutions and mil spec connectors manufacturer for a complete range of high-performance applications. Our industry-leading materials knowledge, engineering design experience, and testing capabilities are key to achieving reliable service in the most extreme environments. You’ll find a large selection of popular Mil-Spec military connectors such as MIL-DTL-83513 micro connector, MIL-DTL-38999 iii connector, MIL-DTL-32139 nano connector, MIL-DTL-26482 automotive connector, d-sub, micro-d connectors, and more, available in standard or custom configurations of mil connector.

MICRO SEALED CONNECTORS

Sunkye Military/Space grade Micro-D sealed/ hermetically sealed rectangular connectors are based on the highly reliable twist pin contact technology with a rectangular package for best performance. Sealed panel mount connectors are an ideal interconnect solution for heavy-duty and harsh-environment applications.

Micro Sealed Connectors for Choice

Sunkye R04J Series Mil Spec Solder Cup Glass-Sintered Sealed Connector

Description of Micro Sealed Connectors

Hermetic micro d connectors are used in applications where an enclosure needs to be isolated from the outside environment. Panel feed-through is the main application for this type of miniature sealed connectors. In the vast majority of applications, the use of a hermetic encapsulant offers sufficient levels of hermeticity at a reasonable price. Only extreme environments require glass-to-metal sealing.

Furthermore, Sunkye fully tests its hermetic micro d connector solutions to provide reliability and satisfaction to its customers. Helium leak rate is the most common and most reliable method to quantify a small leak. Based on its expertise, Sunkye can also design tailor-made hermetically sealed rectangular connectors to fit your application needs.

By mounting the flange to the panel, all Sunkye hermetically sealed electrical connectors can be used to maintain low or high pressure vacuum seals. They are fully compatible with standard Micro-D connectors. A wide range of products is already available, however, custom interconnect solutions can be designed for specific panel cut-outs and thicknesses.

Performance of hermetic micro d connector

Contact Pitch * 0.050˝ (1.27 mm)

TEMPERATURE RANGES *

– STANDARD    -55°C / +150°C

– HIGH TEMP    -55°C / +200°C

Vibration * 10Hz-2000Hz, 196m/s2

Air Leakage Rate * 1*10-3Pa.cm3/s

Contact arrangements of hermetic micro d connector

Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts

Plastic shell: 9, 15, 21,25,31,37, 51 contacts

Features of hermetic micro d connector

Terminal Mounting: Solder Cup mounting

High performance hermetic metal connector and PTFE wire with male Twist Pin or female connector.

Socket: Female contact, fitted to socket connector (also known as socket).

Insulator: 20% GFPPS (20% glass filled polyphenylene sulfide)

Insert: Moulded insulation housing, separating each connection.

Interfacial Seal: Fitted to socket connector only

Shell: Connector metal body plated gold.

Thickness of Gold plating:  ≥1.27micron

Jackscrew: High or low profile, hexagonal socket or slotted head.

Jackpot: Mates with jackscrew.

LCP: Liquid Crystal Polymer.

Potting: Epoxy compound used as an encapsulant.

Standard connector * Manufactured to the MIL DTL 83513 standard dimensions and specifications.

Hermetic feed through connectors: Micro-D hermetic feed through is only available as rear panel mount connectors. Specific jackpots are used to secure the feed through on the panel.

Sealed Connector: This type of hermetically sealed rectangular connectors are widely applied for the various industry which requestes for air leak flow of connector environment.

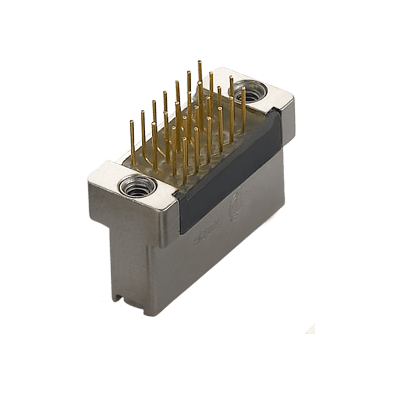

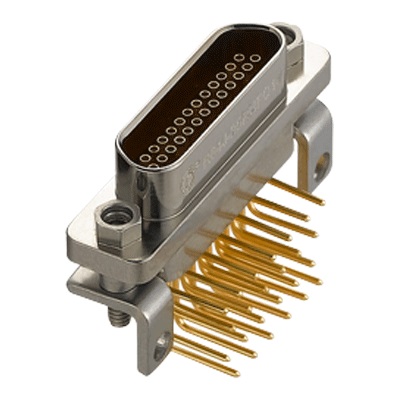

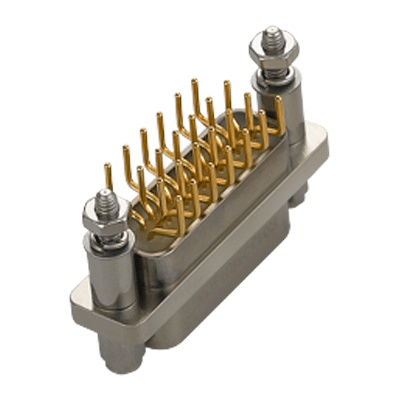

MICRO RIGHT ANGLE PCB CONNECTOR D-SUB TYPE

The right angle board to board connector features gold-plated BeCu Twist Pin contacts for best performance. Sunkye Micro D-sub right angle PCB connector matches with MIL-DTL-83513 standard and accept standard jackscrews and jackpots, available in metal shell version. It is also environmentally sealed.

Micro Right Angle PCB Connector D-sub Type for Choice

Sunkye R04A Mil Spec Right Angle To PCB Connector

Sunkye R04J MIL-DTL-83513 Micro D-Sub Right Angel to PCB Connectors

Description of Micro Right Angle PCB Connector D-sub Type

Right angle d sub connectors are type of MIL-DTL 83513 Micro-D connectors that are bulky and durable, which made them suitable for being applied in harsh environments where durability is extremely important. PCB D sub connectors can also be compatible with many old-fashioned devices. For these advantages, right angle D-sub connector is widely used in factories, manufacturing workshops and industrial environments.

Micro D-sub right angle PCB connector is most frequently used connector for flexible and rigid printed circuit boards. Several tail lengths available makes it ideal for flex-to-board applications, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc. PCB right angle connector is a kind of mil spec D sub connector, which is specially applied to connect and fix printed circuit boards. The right angle d sub connector usually adopts pin-in type and has super-strong clamping force of FPC cable.

Performance of Micro D-sub Right Angle PCB Connector

Contact Pitch * 0.050˝ (1.27 mm)

TEMPERATURE RANGES *

– STANDARD  -55°C / +125°C

Contact arrangements of Micro D-sub Right Angle PCB Connector

Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts

Plastic shell: 9, 15, 21,25,31,37, 51 contacts

Introduction of Micro D-sub Right Angle PCB Connector

Series * Micro D Connector

Terminal Mounting * D-sub PCB Type 90°angle to PCB type (also known as right angle to PCB type)

PCB Tail Length * Standard & special custom length

PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm

Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating

The thickness of Gold plating * ≥1.27micron

TWIST PIN * Male contact, fitted to plug connector.

Socket * Female contact, fitted to socket connector (also known as socket).

Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)

LCP * Liquid Crystal Polymer.

Potting * Epoxy compound used as an encapsulant.

Insert * Moulded insulation housing, separating each connection.

Interfacial Seal * Fitted to socket connector only

Shell *Connector metal body plated nickel or cadmium.

Jackscrew *High or low profile, hexagonal socket or slotted head.

Jackpot* Mates with jackscrew.

Standard PCB right angle connector* Manufactured to the standard dimensions and specifications.

Special PCB right angle connector* A standard connector modified to meet specific requirements.

Custom-made PCB right angle connector* Designed to meet specific customer requirements.

D-sub PCB connector * widely apply for the different industry and application.

D-sub Right Angle PCB connector * Board Right Angle connector and Condensed Board Right Angle connector.

D-sub Straight PCB connector * Board Straight connector.

WIDE APPLICATION OF CONNECTORS FOR OIL AND GAS PIPELINE TESTING EQUIPMENT

1. Application of oil connectors

Electrical connectors are key devices that connect circuits, devices, terminals, and applications together.

With the completion of the West-East Gas Pipeline Project and the development of offshore oil and gas extraction technology, the huge underground underwater pipeline network needs to be inspected and repaired every year to prevent oil and gas leakage and pipeline corrosion. Therefore, the demand of the natural gas pipeline inspection equipment, oil connectors and others has increased dramatically.

In order to meet market demand, SUNKYE introduced special connectors for pipeline inspection equipment.

2. The use effect of circular connectors, etc.

This type of connector includes a series of sealed circular connectors for penetrating cabins, and a series of rectangular cable assemblies for sensors, which can meet the functions of signal transmission and power supply of pipeline detection equipment.

The sealed circular connector for penetrating cabin is used in the oil and gas pipeline and can withstand 140MPa pressure. It has the advantages of high density, high reliability, and good environmental resistance.

SUNKYE is a leading supplier of connectors and system solutions, with a leading Chinese engineering design and manufacturing technology company, which can provide professional technical solutions for pipeline inspection, offshore oil and gas exploration, land oil exploration, land and offshore oil drilling platforms, deep sea operations and other fields.

For more information about mil micro, please feel free to contact us!

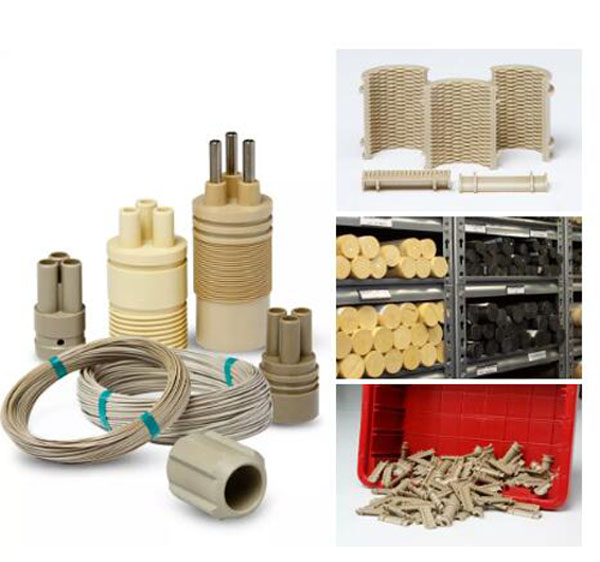

 What is PEEK?

Polyether ether ketone    (PEEK) is a colorless organic thermoplastic polymer in the polyaryletherketone (PAEK) family, used in engineering applications.

PEEK is a thermoplastic semicrystalline with excellent mechanical and chemical resistance properties that are retained to high temperatures. PEEK has a glass transition temperature of around 143 °C (289 °F) and melts around 343 °C (662 °F).  That’s why PEEK seals and manifolds are commonly used in fluid applications. PEEK also performs well in applications where continuous high temperatures (up to 500 °F/260 °C) are common.  It has high resistance to halogen, strong bronsted and lewis acids, thermal degradation,biodegradation, Air leak: helium leak test≤1×10 -3 Pa.cm 3 /s

PEEK melts at a relatively high temperature (343 °C / 649.4 °F) compared to most other thermoplastics. In the range of its melting temperature, it can be processed using injection molding or extrusion methods. It is technically feasible to process granular PEEK into filament form and 3D printing parts from the filament material using fused deposition modeling – FDM (or fused filament fabrication – FFF) technology. PEEK filaments have been demonstrated for producing medical devices up to class IIa.

In its solid state PEEK is readily Machinable, for example, by (CNC) milling machines and is commonly used to produce high-quality plastic parts that are thermostable and both electrically and thermally insulating. Filled grades (30% Glass filled) of PEEK can also be CNC machined, but special care must be taken to properly manage stresses in the material.

PEEK is considered a high-performance polymer, that is to say, its high price restricts its use to the most demanding applications only. Because of its robustness, PEEK is used to fabricate items used in demanding applications, including bearings, piston parts, pumps, High-performance liquid chromatography columns, compressor plate valves, and electrical cable insulation. It is one of the few plastics compatible with ultra-high vacuum applications.

Beware of the difference of PEEK & PEK

PEEK is Polyether ether keton & PEK is Polyether keton, both are very strong mechanical and chemical resistance properties but PEEk has one more molecule that means the physical performance more stability.

The Usage of PEEK Connector

PEEK connector, we also call it PEEK sealing terminal or HTHP connector, just as its name implies which the connector is made from PEEK material combining with metal contact and using glass sintered technology sealing PEEK material & contact so it has perfect air leakage performance. In wellhead, gate valve requires to PEEK terminal for sealing, or tubing head spool for connect gauge or control line of the outlet of the wellhead, and using on adapter spool for hydraulic control line terminated(C/L), electrical cable fit.The working environment of oil gas petrochemical industry is always harsh, dirty, and with high pressure, extreme temperature, chemical corrosion, low PH erosion, and various different kinds of gas. sealed connectors which can withstand physical performance with Pressure in 30,000PSI /207Mpa and the extreme temperature in 300℃, can perfectly satisfy the working needs for the special area and provide high-performance solutions as oil and gas connectors.

For more information about mil micro and d sub connector, please feel free to contact us!

 PEEK connector, we also call it PEEK sealing terminal or HTHP connector, just as its name implies which the connector is made from PEEK material combining with metal contact and using glass sintered technology sealing PEEk material & contact so it has perfect air leakage performance. In wellhead, the gate valve requires to PEEK terminal for sealing, or tubing head spool for the connect gauge or control line of the outlet of the wellhead, and using on adapter spool for hydraulic control line terminated(C/L), electrical cable fit.

The working environment of the oil gas petrochemical industry always is harshness, dirty, high pressure, extreme temperature, chemical corrosion, low PH erosion, and various different kinds of gas. PEEK, benefits of physical performance with Pressure in 30,000PSI /207Mpa, the extreme temperature in 300℃, it satisfies for the special area and high-performance solutions. Thus, peek connectors can be used in harsh conditions.

PEEK melts at a relatively high temperature (343 °C / 649.4 °F) compared to most other thermoplastics. In the range of its melting temperature, it can be processed using injection molding or extrusion methods. It is technically feasible to process granular PEEK into filament form and 3D printing parts from the filament material using fused deposition modeling – FDM (or fused filament fabrication – FFF) technology. PEEK filaments have been demonstrated for producing medical devices up to class IIa.

In its solid state PEEK is readily Machinable, for example, by (CNC) milling machines and is commonly used to produce high-quality plastic parts that are thermostable and both electrically and thermally insulating. Filled grades(30% Glass filled) of PEEK can also be CNC machined, but special care must be taken to properly manage stresses in the material.

PEEK is considered a high-performance polymer, that is to say, its high price restricts its use to the most demanding applications only.

Polyether ether ketone    (PEEK)  is a colorless organic thermoplastic polymer in the polyaryletherketone (PAEK) family, used in engineering applications.

PEEK is a thermoplastic semicrystalline with excellent mechanical and chemical resistance properties that are retained to high temperatures. PEEK has a glass transition temperature of around 143 °C (289 °F) and melts around 343 °C (662 °F).  That’s why PEEK seals and manifolds are commonly used in fluid applications. PEEK also performs well in applications where continuous high temperatures (up to 500 °F/260 °C) are common.  It has high resistance to halogen, strong bronsted and Lewis acids, thermal degradation, biodegradation, Air leak: helium leak test ≤ 1×10 -3 Pa.cm 3 /s

Because of its robustness, PEEK is used to fabricate items (such as, military grade connector) used in demanding applications, including bearings, piston parts, pumps, High-performance liquid chromatography columns, compressor plate valves, and electrical cable insulation. It is one of the few plastics compatible with ultra-high vacuum applications.

Beware of the difference of PEEK & PEK ;

PEEK is Polyether ether keton & PEK is Polyether keton, both are very strong mechanical and chemical resistance properties but PEEk has one more molecule that means the physical performance more stability.

Sunkye is a aerospace connectors manufacturers, we provide d sub connector,cnc peek plastic, mil spec connectors automotive and etc. For peek polymer uses  and  applications of peek , contact us.

 The military specification military circular connectors is an electrical connector that can be used normally in harsh environments. Manufacturing meets the strict requirements of the MIL-DTL-26482 military standard. These connectors are made of solid aluminum rods with a zinc-cobalt olive surface to ensure high corrosion resistance. When mated, these miniature circular connectors are highly resistant to compression and durability, and the connectors are equipped with gold-plated contacts with solder slots. The additional keyway helps prevent mismatching.

What is the purpose of military specification circular connectors?

Military specification small circular connector was originally designed to meet military needs, and can be used in harsh environments such as military vehicles, commercial vehicles, mobile equipment, and oilfield development. Specially designed for durability, vibration resistance, corrosion resistance, etc.Features and advantages of military specifications military circular connector

Bayonet locking mating system to ensure a secure connection

Military specifications comply with MIL-C-26482E

Highly environmentally friendly when mating

Durable structure with stainless steel housing

Zinc cobalt olive surface, high corrosion resistance

Keying prevents mismatch

With gold-plated contacts

Sunkye, as a connector manufacturer company, provides you with different military specifications circular connectors, a variety of products with different specifications and models for you to choose, so as to meet the needs of different application scenarios.

You can also choose circular connector contact core, circular connector back shell, circular connector seal, circular connector adapter, circular connector ferrule, industrial automated circular connectors, PCB terminal blocks, etc.

For more information about mil micro and d sub connector, please feel free to contact us!
