Finish: olive drab cadmium (W), black anodized plating (F), black zinc nickel (K), Nickel(T)
Backshells Aluminum alloy
Cable glands: Thermoplastic
Coupling ring: Aluminum alloy
Spring washer: Spring stainless steel
Insert: Elastomeric soft neoprene
MIL-DTL-26482 (formerly MIL-C-26482) describes the general requirements for two series of environment resisting, quick disconnect, miniature, circular electrical connectors (and accessories). Each series includes hermetic receptacles. The two series of connectors are intermateable when using power contacts and are not intermateable when using shielded contacts. (https://en.wikipedia.org/wiki/U.S._Military_connector_specifications)

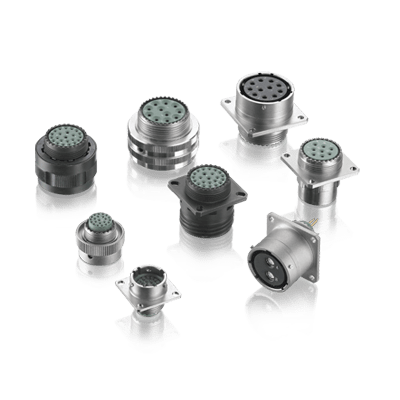

Mechanical Performance of Sunkye MIL-DTL-26482 Series Small Circular Connector
Vibration resistance 10-2000Hz, acceleration 15g test produce per EIA-364-28
Thermal shock 5 cycles 30min.from -55℃ to 125℃ per EIA-364-32
Shock 50g 11ms period per EIA-364-27
Durability 500 mating cycles
Material of Sunkye MIL-DTL-26482 Series Small Circular Connector
Shell : aluminum alloy
Finish : olive drab cadmium (W), black anodised plating (F)
Black zinc nickel (K), Nickel(T)
Backshells: Aluminum aloy
Cabelglands: Thermoplastic
Coupling ring: Aluminum aloy
Spring washer : Spring stainless steel
Insert: Elastomeric soft neoprene
Mechanical Performance of Sunkye MIL-DTL-26482 Series Small Circular Connector
Vibration resistance : 10-2000Hz, acceleration 15g test produce per EIA-364-28
Thermal shock : 5 cycles 30min. from -55°C to 125C per EIA-364-32
Shock : 50g 11ms period per EIA-364-27
Durability : 500 mating cycles
Electrical Performance of Sunkye MIL-DTL-26482 Series Small Circular Connector
Dielectric Strength (Vr.m.s) (Inserted Condition)
Rated Condition M N I II
seal level 300 200 1500 2300
21000m – – – –
Contact Resistance (to lead silver conductor) & Rated Current
Contact No. Insertion Diameter Contact Resistance Rated Current A
#22D Φ0.762 4.6 5
#20 Φ1.02 4 7.5
#16 Φ1.588 3 13
#12 Φ2.39 1.8 23
#10 Φ3.18 1.0 33
#8 Φ3.61 0.6 46
#6 Φ4.52 0.5 60
#4 Φ5.72 0.3 80
Insulation Resisntance :≥5000M 2 (500V DC)
Shielding : 70dBto 5MHz – 40dB to 100MHz
Environment Performance of Sunkye MIL-DTL-26482 Series Small Circular Connector
Temperature Range: -55°C~ +12590.
Salt Spray : 500h(F, K) 48h (W,T)
Sealing: Global IP65
Fluid Resistance : hydraulic oil, refrigerating fluid, and other 12 solvents
For more information about mil dtl 26482 plug and milspec solutions, please feel free to contact us!
Sunkye is a qualified connector manufacturer company and supplier, who support custom connectors for a complete range of high-performance applications. A wide variety of mil dtl 83513 micro d connectors options are available to you, feel free to contact us.
SMT is called Surface Mount Technology. It is a kind of Circuit assembly method that assembles components without pins or short leads (SMC / SMD for Short) on the surface of Printed Circuit Board (PCB) or other substrate by reflow soldering or immersion soldering.
Sunkye surface mount connectors pcb offer premium performance and reliability for demanding applications meeting the mil spec requirements of MIL DTL 32139. Vertical connectors go from the top of one tunnel to the bottom of another tunnel (or another connector). You can connect to the bottom of a glass tunnel but not the top. Once the smt power connector is attached both top and bottom you can build a ladder in it from either end that allows you to travel from one tunnel to the other. The contacts number of Sunkye Nano vertical SMT surface power connector series including: 9, 15, 21, 25, 31, 37, 51, 65, 69.
Dual Row Vertical PCB Surface Mount Power Connector
Reliability for micro-miniature operating systems.
Several tail lengths available.
Operating temperature: 150°C or 200°C.
7 contact arrangements (9 to 51 contacts).
Three locking component smt connector types
Available:
TH, usually mated with receptacle/plug that has a locking screw.
DZ usually mated with a receptacle that has a guide hole, and NH usually mated with a plug that has a guide pin.
Connector Working temperature environment:-55℃~+125℃.
Machine life: 200 times.
Contact Spacing 0.635 mm (.025″)
Different configurations of Nano Vertical SMT Connector
Mil Spec Nano D rectangular connectors for cables.
Mil Spec Nano D rectangular connectors for PCBs.
EMI versions.
High density Micro D SMT power connector.
Characteristics of Nano Vertical SMT Connector
0.635 mm (.025″) contact spacing (double the density of a Micro-D).
The contact number: 9, 15, 21, 25, 31, 37 and 51.
Standard double row.
High reliability twist pin contacts.
Metal shell construction with captivated hardware.
Sunkye’ has also developed custom designed Nano D connectors:
The connector is free mounted, not fixed, and usually mated with a receptacle that has a nut.
Recommended JC (straight slot screw) types of screws.
Tight by a miniature straight screwdriver.
Choosing the JC1 (hex) type of screws, tight by 1.27 mm sub tense screwdriver.
PC tail solder on flexible PCB, PCB thickness is 0.25MAX.
Working temperature environment: -55℃~+125℃.
Machine life: 200times.
Nano Surface Mount USB Connector hardware includes jackscrew or female threaded shells. Applications include down-hole electronics, missile systems, launch vehicles, and satellites. M32139 type dual row nano miniature rectangular connectors. Flex assembly, PCB thru-hole, surface mount, straddle mount or back to back cable configurations. Connector savers and EMI protective cover are also available. Nano miniature dual-row plug and receptacle connectors are offered in titanium, stainless steel or aluminum shells. Straddle connectors are configured with 0.635 mm contact spacing and DWV rating of 250 volts AC. Up to 11 contact layouts are available with three wire type options including Ultra lightweight insulation with gold-coated high strength copper; extruded PTFE insulation with silver coated copper, and cross-link modified ETFE insulation with high strength silver coated copper.
For more information about d sub connector, please feel free to contact us!
Sunkye Nano sealed circular connectors series features gold alloy Twist Pin contacts, Glass-sinter sealed can withstand high temperature and high voltage.
The nano circular pcb connectors can meet oil exploration and other harsh environment applications. This series products widely applied in the military, land ground defense, air or areas.
Furthermore, Sunkye fully tests its hermetic Nano-D solutions to provide reliability and satisfaction to its customers. Helium leak rate is the most common and most reliable method to quantify a small leak. Based on its expertise, Sunkye can also design tailor-made sealed pcb connector to fit your application needs.
Hermetic sealed pcb circular connector are used in applications where an enclosure needs to be isolated from the outside environment. Panel feed-through is the main application for this type of connector. In the vast majority of applications, the use of a hermetic encapsulate offers sufficient levels of hermeticity at a reasonable price. Only extreme environments require glass-to-metal sealing.
If you are looking for a reliable electronic connector company, please contact us.
The primary advantage of surface mount horizontal interconnects is that they allow the product designer to use both sides of the identical location on a PCB.
Description of Nano Horizontal SMT Connector
Sunkye Nano horizontal SMT PCB connector series, contact number: 9, 15, 21, 25, 31, 37, 51, 65, 69. These board to board SMT connectors (Nano-miniature connectors) offer premium performance and reliability for demanding applications. Usually mated with receptacle/plug which has a locking screw. Working temperature environment: -55℃~+125℃. Machine life: 200 times.
Introduction of Nano Horizontal SMT Connector
Series * Nano D Connector
Terminal Mounting * PCB Type Horizontal SMT connector
PCB Tail Length * Standard & Customized
PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm
Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating
The thickness of Gold plating * ≥1.27micron
TWIST PIN * Male contact, fitted to plug connector.
If you want to know more about milspec solutions, please visit our website.
Description of MIL-DTL-83513 Twist Pin Military Standard Plug Contacts
Sunkye MIL-DTL-83513 Micro D sub connectors fitted Twist Pin Contact System, offer outstanding mating performance, provides a superior wire attachment which translates to lower contact resistance—and it does so under extreme conditions of vibration, shock, and high heat. With 1.27mm contact spacing (pitch size), which is half the size of D-sub connectors allow for weight saving, which widely used in the military area, aerospace, aviation, electrical, ship-building, defense system, etc.,
The Twist Pin contact by its design and performance enables the system to meet the most severe requirements – often significantly more so than stipulated in the MIL DTL 83513 3 and MIL-DTL-32139 standards. The male Micro-D contact is made up of 10 strands of beryllium-copper and copper alloy twisted together, welded then bumped. These sprung strands are in fact compressed during insertion into the turned female contact and therefore a high number of electrical contact points are permanently assured while retaining flexibility and ease of insertion/ extraction. The bulged point will be compressed inside the socket during insertion. Insertion and retention performance of the twist pin and socket mated pair. Both socket contact chamfer and twist pin hemispherical radius contribute to ensuring adequate insertion even in case of misalignment.
Producing MIL DTL 83513 contacts, Sunkye has teamed of twist pin Technology with these custom designed insulators capable of meeting the extreme mechanical and electrical needs in the harshest environments of military/aerospace and industrial applications such as Down Hole Directional Drilling.
Product Offerings of MIL DLT 83513 Spec Twist Pin Plug Contacts
Full harnessing capabilities ranging from simple point-point to complex with many branches
Custom configurations and modifications Available to fit unique packaging and design requirements combine the twist pin performance with an increased temperature range
Beryllium copper (BeCu) wire strands provide seven points of electrical contact
Achieve high mating cycles and better resistance to shock and vibration
Approved system applications (Aerospace, Defense and Geothermal)
The Sunkye family of TwistPin equipped Micro-D subminiature connectors to offer outstanding mating performance, durability, and minimal contact resistance. Sunkye Microminiature-D Connectors feature high-density micro TwistPin contacts set on 1.27mm centers in arrangements from 9 to 130 contacts. They are available with insulated and uninsulated wire, PCB, solder cup and flex terminations and are supplied as MIL-DTL-83513 or commercial variations. Our 83513 Micro-D high density connectors and COTS connectors provide a reliable solution for all high-performance interconnect requirements including high temperature and hermetic applications.
Different types of MIL DTL 83513 Contacts

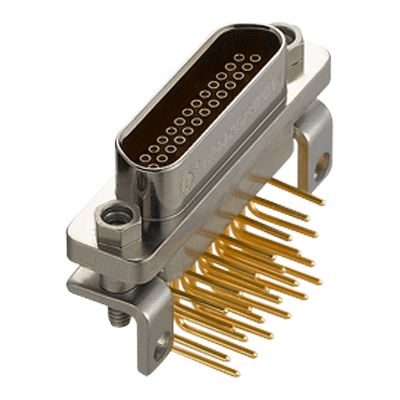

Micro Right Angle PCB Connector D-sub Type
Micro Solder Cup Connectors

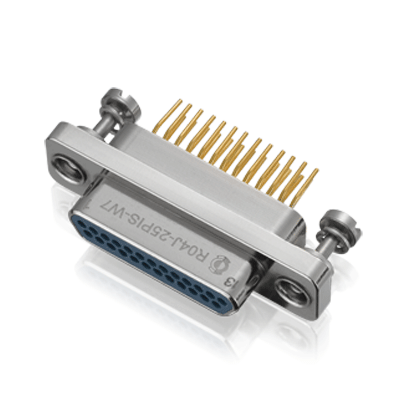

Micro D-sub Straight PCB Connector
Micro Crimp Connectors
Micro PCB Connectors
Micro Sealed Connectors
Micro Wire Backshell Connector
Micro Wireless Backshell Connector
Description of MIL-DTL-83513 Micro D Connectors
By its very design, the Micro-D type connector system meets all the requirements of robustness, durability, low contact resistance, high current, dielectric strength, shock, and vibration. With 1.27 mm (.050″) contact spacing, Micro-D connectors, half the size of D type connectors (D series connectors), represent an excellent solution for saving both space and weight. In addition to a complete range of Micro-D connectors to 83513 micro D connectors, Sunkye also offers Micro-D PCB connectors and cable assemblies in both metal and plastic bodied versions. With its many possible configurations, the technology of micro electrical connectors is perfectly suited to a multitude of systems where weight, miniaturization or signal transmission integrity is paramount: applications benefiting from this technology include everything from missiles and their guidance systems, through oil well drilling tools to medical devices, satellites, and scientific research. For very specific applications such as medical MRI scanners or low magnetic field detection systems, Sunkye has developed a range of non-magnetic connectors using new materials and surface treatments, avoiding ferromagnetic materials. Hermetic micro d connectors are also offered for applications where an enclosure needs to be fully sealed from the outside world.
By the unique design and performance, Sunkye micro d connectors equipped with twist pin contact is enabled to meet the most severe requirements, often significantly more so than stipulated in the MIL-DTL-83513 and MIL-DTL-32139 standards. The male micro D contact is composed of 10 strands of copper alloy and beryllium-copper twisted together, which is welded then bumped. A high number of electrical contact points are permanently assured while retaining flexibility and ease of insertion/ extraction, because during insertion into the turned female contact the 10 sprung strands are compressed. To keep insertion and retention performance of the twist pin and socket mated pair, the bulged point will be compressed inside the socket during insertion. Meanwhile, the exit of socket contact chamfer and twist pin hemispherical radius ensures adequate insertion even in case of misalignment.
Range of Micro-D connectors which is covered by the MIL DTL 83513 standard is ideally suited to equipment and applications where weight, miniaturization and long term performance are required, so in these aspects it is a model recommended by micro d connectors manufacturers. It is available: In 10 contact arrangements (9 to 100 contacts) for rectangular Micro-D connectors
MIL DTL 83513 Micro D Connectors Specification/Dimensions
Frequently asked questions about Mil Dtl 83513 Micro D Connector
What is mil dtl 83513 Specification?
MIL-DTL-83513, (formerly MIL-C-83513) describes polarized shell, micro-miniature, rectangular electrical connectors with solder or non-removable crimp contacts. Featuring of high current capability, low contact resistance, high dielectric strength and excellent resistance to shock and vibration, while offering a high pin density, small size and lightweight body, the MIL DTL 83513 plug meet the severe requirements of different applications and harsh environments, which is mechanically robust and durable. The connector is often referred to as a Micro-D connector system, which can be applied to a multitude of systems including aerospace avionics, radars, advanced soldier technology systems, military Global Positioning Systems, medical devices and down-hole drilling tools, etc., in which weight, miniaturization or signal transmission integrity are paramount. The Micro-D formfactor has become so popular among engineers and systems designers that many Micro D connectors manufacturers have begun to offer high speed (up to 10Gbps) and modular versions of the connector.
What is a 83513 micro D connector used for?
The D-subminiature or D-sub is a common type of electrical connector commonly used in computers, Communications ports, Network ports, Game controller ports, etc. D sub connectors feature parallel rows of connector pins, surrounded by a metal shield. The shield is shorter on one side, resembling the D English letter. A smaller type of connector derived from the D-sub is called the microminiature D, or micro-D. It is about half the length of a D-sub and its primary application is space-grade technology.
Except MIL DTL 83513, What are other Mil Spec Connector?
Mil Spec connector are now used in aerospace, industrial, marine, and even automotive commercial applications. For electrical connectors, except MIL DTL 83513, there are many Military Standards including MIL DTL 32139, MIL DTL 38999, MIL DTL 26482, MIL-DTL-83538 standard, etc. For fiber optic connectors, there are two main standard: MIL-C-83522 and MIL-DTL-83526. For alternative connectors, MIL-PRF-29504, MIL-PRF-2887, MIL-PRF-39012, MIL-PRF-31031, MIL-PRF-49142, MIL-PRF-64266 are widely used.
As a connectors supplier, we will do our best to meet all the needs of customers.
Mechanical Performance of MIL-DTL-38999 iii Series Small Circular Span Wire Separating Connector
Durability: 1500 mating cycles
Electrical Performance of MIL-DTL-38999 iii Series Small Circular Span Wire Separating Connector
Electrical Conductivity Between the Shell : 3mV
Shielding : 100MHz : 90dB 1GHz : 85dB
10GHz(M): 65dB 10GHz(J): 50dB
Environment Performance of MIL-DTL-38999 iii Series Small Circular Span Wire Separating Connector
Temperature Range : olive drab cadmium plating (J): -65℃~+175℃
nickel plating (M): : -65℃~+200℃
Salt Spray: 2000h.
Sunkye is uniquely qualified to deliver turnkey custom solutions and Mil-Spec military electronic connector company for a complete range of high-performance applications. Our industry-leading materials knowledge, engineering design experience, and testing capabilities are key to achieving reliable service in the most extreme environments. You’ll find a large selection of popular Mil-Spec military connectors such as MIL-DTL-83513 micro connector, MIL-DTL-38999 iii connector, MIL-DTL-32139 nano connector, MIL-DTL-26482 automotive connector, d-sub, micro-d connectors, and more, available in standard or custom configurations of mil connector.
Equipping soldiers for modern missions means giving them the technological edge to succeed. To develop soldier wearables and systems, including integrating personal networks, sensors, C4 communications, and the power to manage the systems, as well as connect all the systems in a reliable and easy-to-use manner. Wearable technologies have been evolving in the most unexpected fields, according to recent studies, wearable technologies will enable soldiers to either track and be tracked in real-time and great precision – which will ensure the safety of these soldiers as well as to diminish the risk of failure in high-risked operations. In this respect, developing technologies that are discreet and can be carried along the soldier can be a life changer.
Now the price of soldier connector is reasonable, anything you need, please contact us.
Sunkye International was originally developed in the early 1950’s and was one of the twist pin, mil grade connectors including mil spec micro D connector and mil spec nano D connector manufacturing companies to license this technology and improve it. Sunkye focuses on custom military connector assembly and standard Mil-Spec military connectors for quick turnaround to help you reduce your acquisition cost and lead times, simplify your assembly, and improve the quality and reliability of your military designs. Sunkye focuses on fully automatic assembly connector’s technology and developing, till nowadays totally 14 lines are under manufactory. Output capacity is 56.92secs/EA, 369,000EA/Month.
In the process of establishing an error prevention work system in the automotive wire harness design, it is mainly divided into structure error prevention, component error prevention, color error prevention, and size error prevention. It can combine different requirements to establish a targeted error prevention control system.
1. Structural error prevention
In the process of designing automotive wiring harnesses, in order to effectively comprehensively deal with connectors in adjacent positions, it is necessary to improve the processing effect of automotive power connectors of the same type and different structures in conjunction with the electrical end to ensure that the error prevention effect can be fundamentally improved and the design effect On the basis, it is necessary to control and manage the electrical side of different structures, to improve the connection of the same type as much as possible, and to reduce the types of middle terminals that appear in the production process of the wiring harness.
2. Component error prevention
In order to fundamentally ensure the application effect of automotive connectors, it is necessary to analyze and actually judge the design selection work, and fundamentally improve the basic level of error prevention effects in the design effect.
First, in the process of automotive electrical connector design and selection, it is necessary to combine the electrical end application requirements to ensure that connectors with a certain difference in shape are selected, and a highly compatible mating processing mechanism is established to ensure the effectiveness of the mating control work. . In addition, the shape of the tail must be effectively improved to enhance the practical application value of the overall shape and improve the error prevention effect.
Second, it is necessary to analyze and analyze the self-locking or back cover of the military grade connector, effectively integrate the connector body project, and select a different back cover or self-locking system, and then check the self-locking size parameters, outlet direction parameters and guide grooves Processing, combined with color error prevention can improve the overall error prevention effect.
3. Color error prevention
After the actual automotive wiring harness design work is carried out, the technical department should make overall analysis and judgment based on actual requirements, effectively integrate the color system, rationally improve the intuitive processing mechanism, and hang on the color error prevention. In other words, the designer must supervise and manage the limitations of the design process of parts and automotive connections, improve the effectiveness of the error prevention work, and comprehensively analyze the color error prevention. Only by ensuring that the color design and marking work meet the requirements for error prevention can the effectiveness of the error prevention effect be improved.
4. Size error prevention
The so-called dimensional error prevention is to comprehensively deal with the parts where error prevention may occur. The relevant designers must determine the branch of the differential function connector, and use the direction of the cable outlet or the buckle to guide and control the fixed parts to improve the reasonableness of the prevention. The combined effect of the wrong effects. The most important thing is that in the ideal size system, it is necessary to constrain and manage the mating of the waterproof automotive connectors and the electrical end to ensure that the connectors can meet the requirements on the basis of consistency, and the overall mating effect can also meet the size prevention Wrong job goal.
5. Docking and error prevention
In order to effectively achieve the goal of automotive wiring harness design, the design process must also monitor and control specific work processes. In particular, some design work that cannot be implemented for shape error prevention, color error prevention, and size error prevention must integrate specific automotive connector design work, improve the comprehensive level of error prevention functions, and lay the foundation for comprehensive optimization of subsequent processing effects. In addition, it is necessary to carry out a comprehensive analysis of the connector in accordance with the basic requirements such as design principles and layout space, improve the operation effect of changing the position, and improve the anti-fault prevention effect.
In addition, in the process of designing the wiring harness, the design department must also centrally manage the banding error prevention, the outlet direction, and the type of fixing to effectively improve the fixing effect, ensure the optimization of application efficiency, and maintain the wiring harness design connector processing effect.
