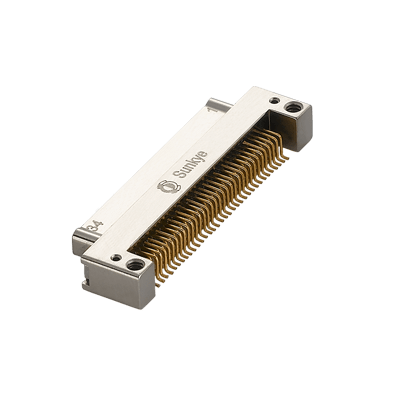

Nano Horizontal SMT Connector
The primary advantage of surface mount horizontal interconnects is that they allow the product designer to use both sides of the identical location on a PCB.
Description of Nano Horizontal SMT Connector
Sunkye Nano horizontal SMT PCB connector series, contact number: 9, 15, 21, 25, 31, 37, 51, 65, 69. These board to board SMT connectors (Nano-miniature connectors) offer premium performance and reliability for demanding applications. Usually mated with receptacle/plug which has a locking screw. Working temperature environment: -55℃~+125℃. Machine life: 200 times.
Introduction of Nano Horizontal SMT Connector
Series * Nano D Connector
Terminal Mounting * PCB Type Horizontal SMT connector
PCB Tail Length * Standard & Customized
PCB Layout * 1.27*2.54mm & 2.54mm*2.54mm
Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating
The thickness of Gold plating * ≥1.27micron
TWIST PIN * Male contact, fitted to plug connector.
If you want to know more about milspec solutions, please visit our website.
