Brief Introduction of super pin:
Super pin contacts is a typical miniature connector contacts, the minimum diameter is 0.254mm (0.01”).
Super pin contacts is an advanced and high performace solderless compression connector technology be repeated disassembly and maintenance, can keep the best connection of the electric current and microwave in the vibration environment.
Super pin contacts with high speed signal transmission, long service life, better adaptability etc. high performance and are widely applied in the fields of both military and industry.
High signal speed capability enabling frequencies greater than 40 GHz.
Application of Super pin contacts:
Super pin contacts can be widely used in weapons, satellite, missiles, space probe, aircraft, supercomputer, vacuum system, product testing system, IC(integrated circuit), unmanned aircraft system, UAS(Unmanned Aerospace Surveillance), jet fighter, radar array, crash-test, RF and high signal transmission etc.
Performance of Super pin contacts:
Current Capability : 5 Amps Continuous
Environment temperature range:-60℃～150℃
Mating Cycles (Super pin contacts alone): ＞5000 cycles
Mating Cycles (with Hardhats) : ＞500000 cycles
Compression Force:34 grams
Frequency Capability:to 40 GHz in natural state, to 100 GHz with design optimization
Compliance : 15 – 30% of length
Cross Talk/Bandwidth:-20dB@10Ghz
Insertion Loss/Bandwidth:-0.2dB@10GHz/-1dB@26GHz
Return Loss/Bandwidth:-15dB@10GHz
Inductance:0.19nH Self / 0.03nH Mutual
Capacitance:0.16pF Ground / 0.008pF Mutual
Contact resistance:<10mΩ
Tesing sample of Super pin contacts:
| Part no. | SKFB-0.5/ 5 | ||
| Material | Copper-Be | Length（Tolerance+20 0%） | 5mm |
| Diameter（Tolerance±5%） | φ0.5mm | Volume fill rate (Tolerance±2%） | 28% |
Testing datasheet of Super pin contacts
| Item | Technical analysis indicators | Result |
| 1 | Current Capability(max) | 5A |
| 2 | Operating temperature range | -60℃～+150℃ |
| 3 | Mating Cycles | 1000 cycles |
| 4 | Mating Cycles (with Hardhats) | 1000 cycles |
| 5 | Compliance | 15% – 30% of length |
| 6 | Compression Force | 0.46N（0.5mm compression） |
| 7 | VSWR | ≤1.87@10GHz |
| 8 | Insertion Loss | ≤-0.48dB@10GHz |
| 9 | Return Loss | ≥10.39dB@10GHz |
| 10 | Resistance | ＜42.7mΩ |
| 11 | Thermal shock | -60℃～+150℃ |
| 12 | Humidity | 240h |
| 13 | Salt spray | 48h |
| 14 | Vibration | 150m/s2 |
| 15 | Shock | 490m/s2 |
Feature of Super pin contacts
High signal speed capability enabling frequencies greater than 20 GHz.
Solderless, compression-style interconnect system.

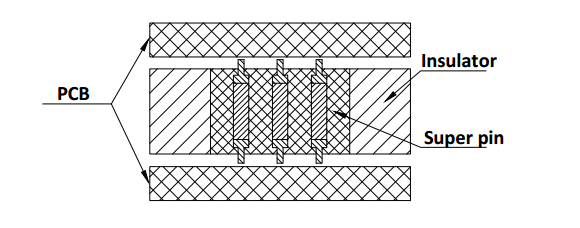

Applications include production Land Grid Array (LGA) integrated circuit sockets and parallel PCB to
PCB interconnections.
Provides solutions to many of the problems associated with through hole and surface mount soldered technology.
Enables upgrade and system maintenance strategies.
Available in custom I/O configurations and I/O counts from 1 to over 7,000.
Contact centerline spacing of 1mm or greater.
Excellent reliability in commercial, military, and aerospace applications.
Application can result in lower installed and system maintenance costs.
Materials of Super pin contacts
Contact Material: Molybdenum
CIN::APSE Contact Plating: Gold
Plunger Material: Copper alloy
Plunger Plating: Gold
Insulator Material: Liquid crystal polymer
Packaging Tray Material: Anti-static ABS
Mechanical of Super pin contacts
Contact-Only Configuration with 0.020″ (0.5 mm) diameter
Durability: 25,000 Z-axis actuations (CIN::APSE contact only)
Shock:100 Gs; 6 milliseconds; no discontinuity greater than 2 nanoseconds
Vibration:20 Gs; 10-2,000 Hz; no discontinuity greater than 2 nanoseconds
Electrical of Super pin contacts
Contact-Only Configuration with 0.020″ (0.5 mm) Diameter
DC Resistance: Less than 15mOhm
Inductance: Less than 0.5 nH
Current-Carrying Capability: 3 – 6 Amps
Insulation Resistance: > 1000 MOhm @ 500 VDC
Dielectric Withstanding Voltage: 500 VDC at sea level
Environmental of Super pin contacts
Contact-Only Configuration with 0.020″ (0.5 mm) Diameter
Temperature Life Testing: 1000 Hours @ 200°C; 5000 Hours @ 170°C
Thermal Shock: 100 Cycles @ -55°C to +85°C; 2,000 cycles @ -20°C to +110°C
Humidity: 5,000 Hours @ 30°C to 80°C @ 85% RH
Salt Spray: 96 Hours
Low Temperature: Operates in liquid nitrogen (-200°C)
Bellcore TR-NWT-001217: Passed with plungers
