With the development of the Unmanned technology, more and more UAV/UUVs/USV/UGV s are used in modern military operations, and some even predict that UAV/UUVs/USV/micro UGV will likely become the dominant force in air operations in the 21st century.
UAV/UUVs/USV/UGVs have the characteristics of compact structure, strong concealment, flexible maneuverability, low cost, and easy to use. They are mainly used in battlefield reconnaissance, electronic jamming, carrying cluster bombs, guided missiles, and other weapons to perform offensive missions, and used as air communication relay platform, nuclear test sampler, nuclear explosion and nuclear radiation reconnaissance aircraft, etc. The size of UAV ranges from a large wingspan of 40 meters to palm drones as small as 16 cm and weighs only 18 grams. More and more types of drones have been developed and put into application. There are higher autonomous mobility and size requirements about UAV, no doubt that connectors play an increasingly important role in the design process. The application fields of Sunkye UAV connectors include:
UAV Power & Control Systems
UAV Guidance Systems
Inertial Navigation Systems (INS)
Global Navigation Satellite Systems (GNSS)
Thermal or Visual Cameras
Airborne Radar Systems (solar, communication, surveillance, etc.)
Laser Scanners
UAV Ground Control Station (GSC)
Although there are now advanced reconnaissance and strike integrated drones, 80% of UAVs are still reconnaissance drones, which determines that a large part of military drones will develop in the future in a smaller size. The smaller size, lighter weight, and excellent adaptability to various extreme environments give Sunkye connectors performance that exceeds the requirements of military drones:
Size and Volume: Micro-D and Nano-D connectors can meet light and miniaturize demand
Weight: 0.3g~5g
Spacing of Contacts: 0.635 mm/1.27 mm/2.54 mm
Superior Electrical Transmission Performance: Twist Pin contact, which is top technology in the world
EMC: 360° EMC shielding
Vibration: 10HZ~2000HZ 196 m/s²
Shock: 980 m/s² 6ms
High Temperature: -55℃~+125℃
Waterproof Seal: IP67/IP68
Low Current: 1A~3A
Under the unmanned application solutions in Aviation/Ground Radar/Military Ground Vehicles and Communications/Navy Coast Guard/ Space/Satellites/Sub sea/Oil Gas and Commercial Industry, Sunkye microstrip connector R013 & R068 series products provide an integrated mounting for it. Benefit the ultra-small & narrow size and weight, high-frequency, 1.27 mm*1.1 mm space in 1 row and 2 rows design. With stable signal and electrical transform and with latch or W/O for choose.

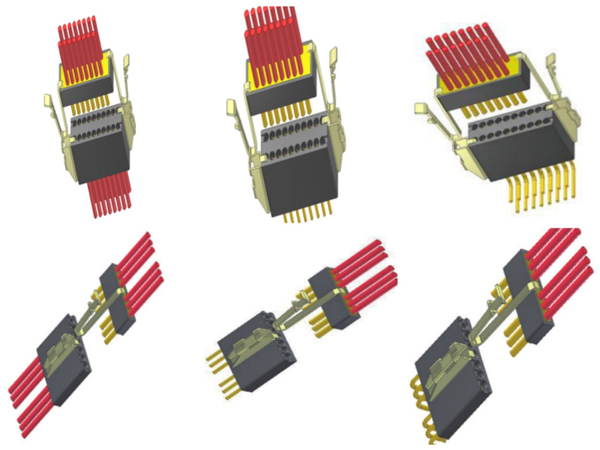

R013 Micro Strip Connector with Latch
Twist pin contacts, high density interconnection.
Equivalent to Airborn M series buckle connector
Twist pin contacts, high density interconnection
With locking buckle, connector can be locked and separate
quickly and avoid mis-operation
Meet MIL-C-83513 standard, lightweight connectors
Are suitable for harsh environment application
R068 Micro Strip Connector
Contacts:2,3,4,5,6,7,8,9,10,11,12,13,14,15,16,18 pins.
The sectional area of cable core:0.1 mm²- 0.15 mm²
The receptacle with guide pin
Meet MIL-C-83513 standard, lightweight connectors
Currently, there are more than 200 types of UAV in the world, and there will be more in the future. Sunkye can produce custom connectors to meet different types and functional design requirements of drones.
Drones are consumables to a certain extent, and in order to adapt to the rapidly changing application environment, the cost control of connectors and fast delivery time are very important. As a connector manufacturer company with 70 years of professional experience, Sunkye can meet these two requirements very well.
For more information about military connectors, please feel free to contact us!
