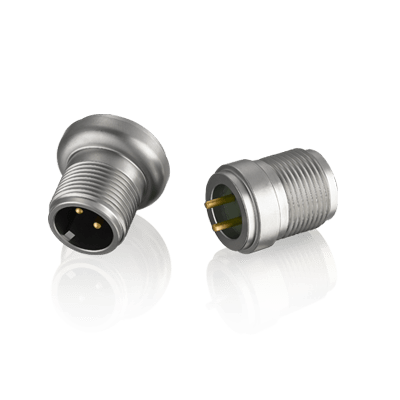

Waterproof Ip68 electrical connectors meets with International Protection Marking, IEC standard 60529.
Against test duration: 30 seconds in each of 4 angles (2 minutes total) and Water volume: 14–16 liters per minute.
Working Environment, Pressure: 8–10 MPa (80–100 bar) at a distance of 0.10–0.15 m
Water temperature: 80 °C.
Underwater approve.
| Specification of Sunkye Waterproof Connector Ip68 | |
| Environment temperature | -55℃~+125℃ |
| Vibration | 10Hz~2000Hz, 196m/s² |
| Random vibration | Power spectrum density 0.4G²/Hz, root mean square value of total acceleration 23.1G |
| Shock | 735m/s² 11sm |
| Rated current | 3A |
| Contact resistance | ≤10mW |
| Insulation resistance | ≥5000MW |
| Dielectric strength | 800V |
| Durability | 500 times |
The judgment standard for sealing performance of waterproof connectors is what we call IP waterproof grade standard. The latter two XX of ipxx refer to two numbers, the first X refers to the number 0 to 6, with the highest level of 6; the second X refers to the number 0 to 8, with the highest level of 8. Therefore, the highest waterproof level of waterproof connector is IP68. There are different standards for different IP waterproof grades, especially for IP68 waterproof grade test. Its test equipment, test conditions and test time should be recognized by both parties. The ip68 waterproof power cable connector provided by Sunkye are ip68 rated connectors, that are definitely underwater approved, which can be a good choice for you.
