Description of Micro Wireless Backshell Connector
This type of device is designed to provide screening, sealing, and reparability. Micro-D EMI backshells connect cable shields to Micro-D connectors, providing strain relief and mechanical protection. Engineered to help resist corrosion and fit a wide range of circular connectors, backshell and adapter components help protect connections from mechanical wear, environmental conditions, and electromagnetic interference (EMI). These micro d connector backshell are made out of aluminum alloy. Electroless nickel is the most widely used finish. These backshells are compatible with industry- standard metal shell M83513 type connectors. These M83513 backshell are available with and without screen termination, providing long-term, high performance in sealed and unsealed electronics systems.
Removable jackscrews according to MIL-DTL-83513/05
For pigtail crimping & solder cup connectors only.
2 sizes of hardware: one version for shell sizes from 9 to 69 ways and another version for the 100-way shell size.
1 kit consists of 2 screws and 2 e-rings.
Hex socket head or slot head.
Material: passivated 300 series stainless steel
Contact arrangements of Micro Wireless Backshell Connector
Metal shell: 9, 15, 21,25,31,37,51,66,74, 100 contacts
Plastic shell: 9, 15, 21,25,31,37, 51 contacts
MICRO-D EMI BACKSHELL of Micro-D Connector Backshell
– Micro-D aluminum backshell for EMI termination.
– Supplied with stainless steel hardware.
– Various entry sizes & shapes.
– Available for standard and micro termination.
– Shell size from 9 to 100.

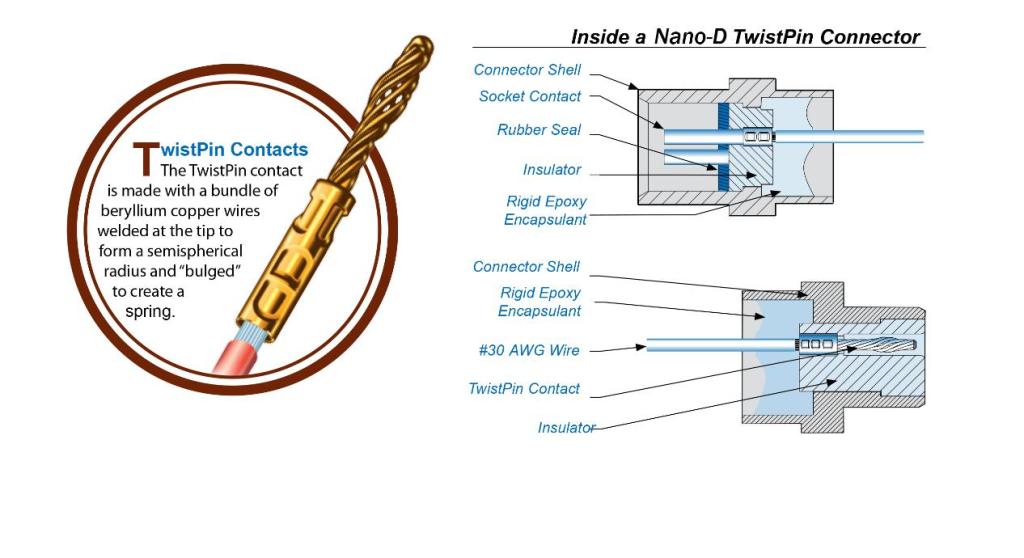

Contacts *Twist pin contacts, high density interconnection, Beryllium copper (BeCu), gold over nickel plating
The thickness of Gold plating * ≥1.27micron
TWIST PIN * Male contact, fitted to plug connector.
Socket * Female contact, fitted to socket connector (also known as socket).
Insulator* 20% GFPPS (20% glass filled polyphenylene sulfide)
Insert * Moulded insulation housing, separating each connection.
Interfacial Seal * Fitted to socket connector only
Shell *Connector metal body plated nickel or cadmium.
Jackscrew *High or low profile, hexagonal socket or slotted head.
Jackpot* Mates with jackscrew.
LCP * Liquid Crystal Polymer.
Potting * Epoxy compound used as an encapsulant.
Introduction of Micro Wireless Backshell Connector
Series * Micro D Connector
Terminal Mounting * Crimping wireless connector
Standard connector * Manufactured to the standard dimensions and specifications.
Special connector * A standard connector modified to meet specific requirements.
Custom-made connector * Designed to meet specific customer requirements.
Pigtail connector * Connector with insulated or uninsulated wires.
Harness * Multi-branched cable assembly.
