The high temperature and high pressure electrical connectors are designed to support the signal transmission of high voltage rating, and there is no safety risk for operators. In the design of connection system, the high-voltage electrical connectors shall have 360° shielding layer and be effectively connected with the cable shielding layer, which covers the whole connector length to ensure sufficient shielding function and minimize the resistance between shielding interfaces.

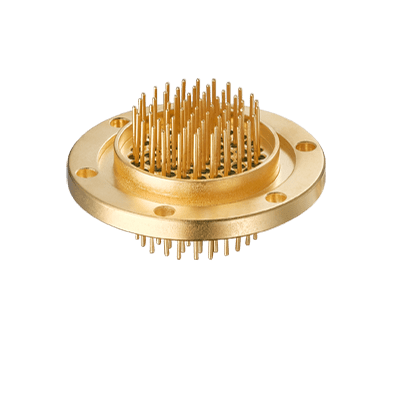

Brief Introduction of Sunkye High Temperature & High Pressure HTHP Connector Series
Type: Glass sintering adapter with single contact
Material: high temperature alloy shell, alloy contact,ceramic and glass insulator.
Mechanical Performance of Sunkye High Temperature & High Pressure HTHP Connector Series
Random vibration: 10Hz· 2000Hz, 0. 3G²/Hz, acceleration 20G, 200℃. 4h on direction X, Y, Z.
Shock: 490m²/s, 11ms
Electrical Performance of Sunkye High Temperature & High Pressure HTHP Connector Series
Dielectric withstanding voltage: 1000VDC, 60s, leak current ≤ 5mA
Normal temperature insulate resistance: 25000MΩ (500VDC, normal-tem.)
High temperature insulate resistance: 2500MΩ (500VDC, 200℃ )
Rated current: 1A continuous current
Environmental Performance of Sunkye High Temperature & High Pressure HTHP Connector Series
Temperature range: -55℃ to +200℃
Operating pressure: 0 MPa to 172.5 MPa
High temperature life: 200C, 600h
Temperature shock: -55℃ to 200℃, 15 cycles, the temperature switching time is ≤ 15 min.
Salt spray: 24h
Air leak: helium leak test< 1x 103Pa.cm3/s
High temperature high pressure: 172.5MPa, 200℃ , 336 h
